PUV Basic
UV water disinfection lamps — PV1–PV12 base series
Official partnerPUV Basic is a series of UV water disinfection lamps from Aqualight Technology, intended for domestic and industrial water supply. The base models (PV1–PV12) destroy bacteria, viruses and micro-organisms effectively without the use of chemicals. They run on a BAP4011 (110 V) or BAP4022 (220 V) controller measuring 11.6 × 6 × 2.6 cm. Flow rates are measured at 95% UV transmittance at the end of lamp life, at 20 °C.
Features
- Chemical-free UV-C disinfection
- UV dose of 30 mJ/cm² or 40 mJ/cm² depending on flow rate
- Compact design for easy installation
- BAP4011 (110 V) or BAP4022 (220 V) controller
- Models from 1 to 12 GPM (3.8–45.4 l/min)
- Stainless steel chamber
Applications
Technical specifications

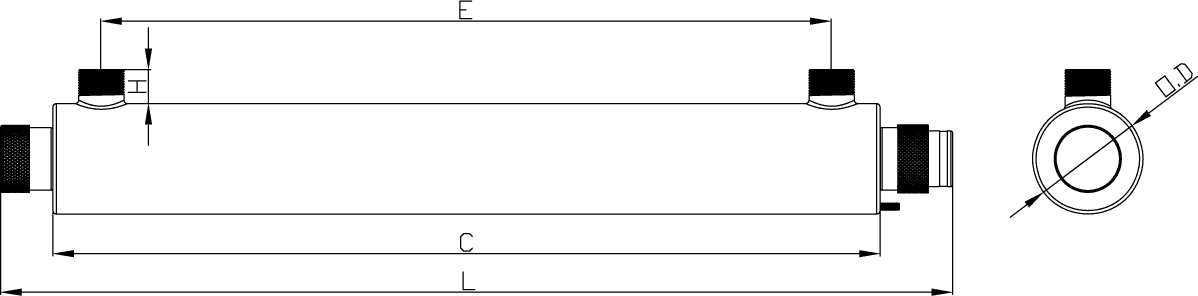

| Model | Flow @30 mJ/cm² | Flow @40 mJ/cm² | Power (W) | Lamp | Inlet/Outlet | Dimensions (L×C×E×H) | Ø |
|---|---|---|---|---|---|---|---|
| PV1 | 1 GPM / 3.8 l/min | 0.8 GPM / 3.0 l/min | 10W | GPH212T5L/4-LT | 1/4" | 265 × 190 × 159 × 17 mm | 50.8 mm |
| PV2 | 2 GPM / 7.5 l/min | 1.5 GPM / 5.7 l/min | 14W | GPH287T5L/4-LT | 1/4" or 1/2" | 351 × 276 × 245 × 17 mm | 63.5 mm |
| PV4 | 4 GPM / 15.1 l/min | 3 GPM / 11.4 l/min | 19W | GPH330T5L/4-LT | 1/2" | 395 × 320 × 274 × 19 mm | 63.5 mm |
| PV6 | 6 GPM / 22.7 l/min | 4.5 GPM / 17 l/min | 28W | GPH505T5L/4-LT | 3/4" | 535 × 480 × 434 × 19 mm | 63.5 mm |
| PV8 | 8 GPM / 30.2 l/min | 6 GPM / 22.7 l/min | 32W | GPH645T5L/4-LT | 3/4" | 685 × 610 × 552 × 21 mm | 63.5 mm |
| PV12 | 12 GPM / 45.4 l/min | 9 GPM / 34.1 l/min | 39W | G36T5L/4-LT | 1" | 910 × 835 × 777 × 21 mm | 63.5 mm |
@30mJ/cm²
1 GPM / 3.8 l/min
@40mJ/cm²
0.8 GPM / 3.0 l/min
Inlet/Outlet
1/4"
Ø
50.8 mm
Lamp
GPH212T5L/4-LT
Dimensions (L×C×E×H)
265 × 190 × 159 × 17 mm
@30mJ/cm²
2 GPM / 7.5 l/min
@40mJ/cm²
1.5 GPM / 5.7 l/min
Inlet/Outlet
1/4" or 1/2"
Ø
63.5 mm
Lamp
GPH287T5L/4-LT
Dimensions (L×C×E×H)
351 × 276 × 245 × 17 mm
@30mJ/cm²
4 GPM / 15.1 l/min
@40mJ/cm²
3 GPM / 11.4 l/min
Inlet/Outlet
1/2"
Ø
63.5 mm
Lamp
GPH330T5L/4-LT
Dimensions (L×C×E×H)
395 × 320 × 274 × 19 mm
@30mJ/cm²
6 GPM / 22.7 l/min
@40mJ/cm²
4.5 GPM / 17 l/min
Inlet/Outlet
3/4"
Ø
63.5 mm
Lamp
GPH505T5L/4-LT
Dimensions (L×C×E×H)
535 × 480 × 434 × 19 mm
@30mJ/cm²
8 GPM / 30.2 l/min
@40mJ/cm²
6 GPM / 22.7 l/min
Inlet/Outlet
3/4"
Ø
63.5 mm
Lamp
GPH645T5L/4-LT
Dimensions (L×C×E×H)
685 × 610 × 552 × 21 mm
@30mJ/cm²
12 GPM / 45.4 l/min
@40mJ/cm²
9 GPM / 34.1 l/min
Inlet/Outlet
1"
Ø
63.5 mm
Lamp
G36T5L/4-LT
Dimensions (L×C×E×H)
910 × 835 × 777 × 21 mm
* Flow rates are measured at 95% UV transmittance at the end of lamp life, at 20 °C.
