Elbi SSC
Sloped-profile tanks for low and under-roof spaces
Capacity
300 – 500 l
Shape
Sloped profile
Installation
Above-ground installation
Sizes
2 models
Elbi SSC is a series of polyethylene drinking water tanks with a distinctive sloped top profile. The shape was developed specifically for installation in height-restricted spaces — under-roof rooms with a pitched ceiling, under-stair recesses and attic spaces where a rectangular or cylindrical tank will not fit. Overall height is just 680 mm on the 300 l model and 850 mm on the 500 l. The body is rotationally moulded from drinking-water-grade polyethylene.
Features
- Drinking-water-grade polyethylene — no seams or welds
- Sloped top profile for pitched ceilings and recesses
- Low overall height — 680 mm (300 l) / 850 mm (500 l)
- Opaque blue colour — limits algae growth
- UV-stabilised material
- Inspection opening Ø300 mm
- Изходи DN1 1" + долен изпразнителен изход 3/4"
- Ø28 mm vent opening
Applications

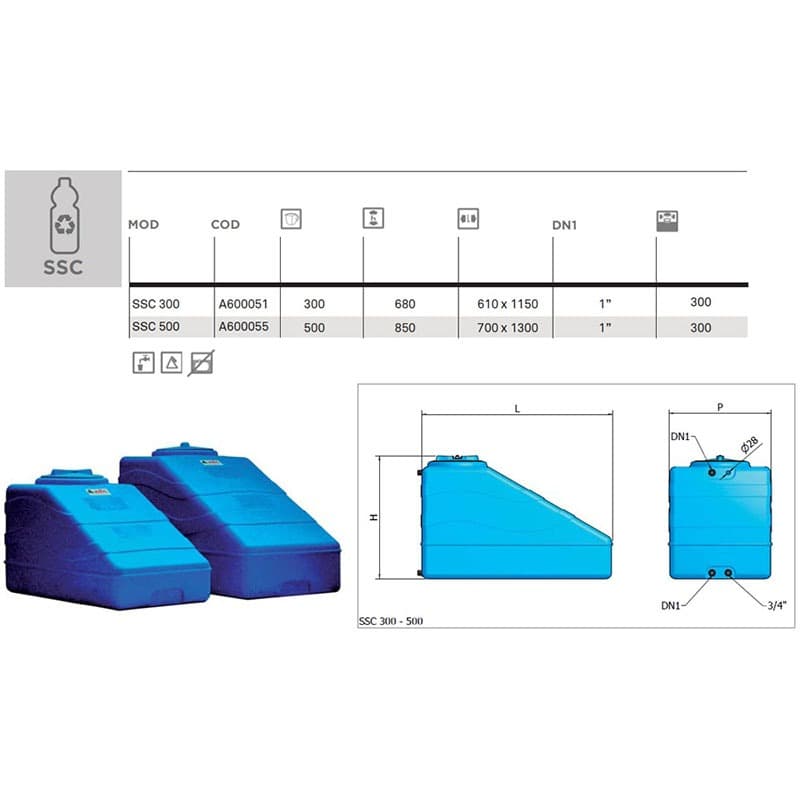

Technical specifications
| Model | Code | Capacity | Footprint (L × W) | Height H | DN1 outlet | Inspection opening |
|---|---|---|---|---|---|---|
| SSC-300 | A600051 | 300 l | 610 × 1150 mm | 680 mm | 1" | 300 mm |
| SSC-500 | A600055 | 500 l | 700 × 1300 mm | 850 mm | 1" | 300 mm |
Code
A600051
Footprint
610 × 1150 mm
Height
680 mm
DN1 outlet
1"
Inspection opening
300 mm
Code
A600055
Footprint
700 × 1300 mm
Height
850 mm
DN1 outlet
1"
Inspection opening
300 mm
All dimensions are external and approximate. All models are intended for above-ground installation. For exact specifications and availability, get in touch.
