Elbi

300–13,000 l

Elbi CV

Vertical cylindrical polyethylene tanks for drinking water

Capacity

300 – 13,000 l

Shape

Vertical cylindrical

Installation

Above-ground installation

Sizes

10 models

Elbi CV is a series of vertical cylindrical polyethylene tanks for storing drinking water in above-ground installations. They are rotationally moulded from drinking-water-grade polyethylene, which guarantees a body free of seams and welds. The deep blue colour of the walls blocks light and limits algae growth in the water. This is the widest series in the PLASTO range — from 300 l for domestic use up to 13,000 l for agricultural and industrial applications. The vertical shape delivers a large capacity in a minimal footprint.

Features

Drinking-water-grade polyethylene — no seams or welds
Rotationally moulded seamless body
Opaque blue colour — limits algae growth
UV-stabilised material for outdoor installation
Inspection opening Ø300 / Ø400 / Ø600 mm
Изходи DN1 от 1" до 2" + долен изпразнителен изход 3/4"
Ø28 mm vent opening
10 sizes — from 300 l to 13,000 l

Applications

Drinking water storageWater supply from boreholesBackup water supply for houses and buildingsIrrigation systemsAgriculture

Request a quote Contact form →

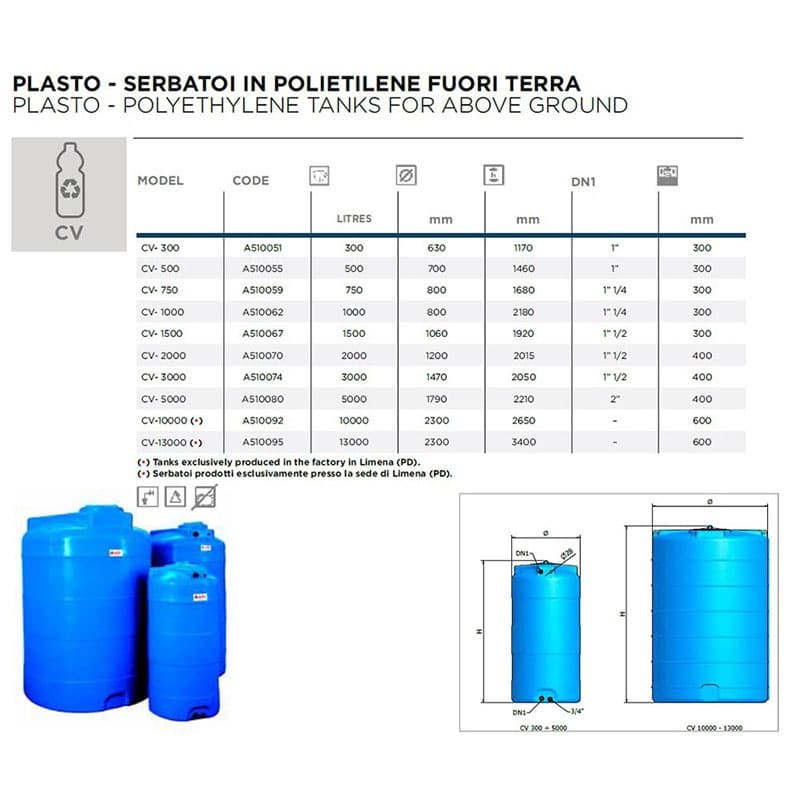

Technical specifications

Model	Code	Capacity	Diameter Ø	Height H	DN1 outlet	Inspection opening
CV-300	A510051	300 l	630 mm	1170 mm	1"	300 mm
CV-500	A510055	500 l	700 mm	1460 mm	1"	300 mm
CV-750	A510059	750 l	800 mm	1680 mm	1" 1/4	300 mm
CV-1000	A510062	1000 l	800 mm	2180 mm	1" 1/4	300 mm
CV-1500	A510067	1500 l	1060 mm	1920 mm	1" 1/2	300 mm
CV-2000	A510070	2000 l	1200 mm	2015 mm	1" 1/2	400 mm
CV-3000	A510074	3000 l	1470 mm	2050 mm	1" 1/2	400 mm
CV-5000	A510080	5000 l	1790 mm	2210 mm	2"	400 mm
CV-10000*	A510092	10,000 l	2300 mm	2650 mm	—	600 mm
CV-13000*	A510095	13,000 l	2300 mm	3400 mm	—	600 mm

Code

A510051

Diameter Ø

630 mm

Height

1170 mm

DN1 outlet

Inspection opening

300 mm

Code

A510055

Diameter Ø

700 mm

Height

1460 mm

DN1 outlet

Inspection opening

300 mm

Code

A510059

Diameter Ø

800 mm

Height

1680 mm

DN1 outlet

1" 1/4

Inspection opening

300 mm

Code

A510062

Diameter Ø

800 mm

Height

2180 mm

DN1 outlet

1" 1/4

Inspection opening

300 mm

Code

A510067

Diameter Ø

1060 mm

Height

1920 mm

DN1 outlet

1" 1/2

Inspection opening

300 mm

Code

A510070

Diameter Ø

1200 mm

Height

2015 mm

DN1 outlet

1" 1/2

Inspection opening

400 mm

Code

A510074

Diameter Ø

1470 mm

Height

2050 mm

DN1 outlet

1" 1/2

Inspection opening

400 mm

Code

A510080

Diameter Ø

1790 mm

Height

2210 mm

DN1 outlet

Inspection opening

400 mm

Code

A510092

Diameter Ø

2300 mm

Height

2650 mm

DN1 outlet

—

Inspection opening

600 mm

Note

on request

Code

A510095

Diameter Ø

2300 mm

Height

3400 mm

DN1 outlet

—

Inspection opening

600 mm

Note

on request

* The CV-10000 and CV-13000 models are produced only at Elbi's plant in Limena (PD), Italy, and are supplied to order.

All dimensions are external and approximate. All models are intended for above-ground installation. For exact specifications and availability, get in touch.
