3HDP

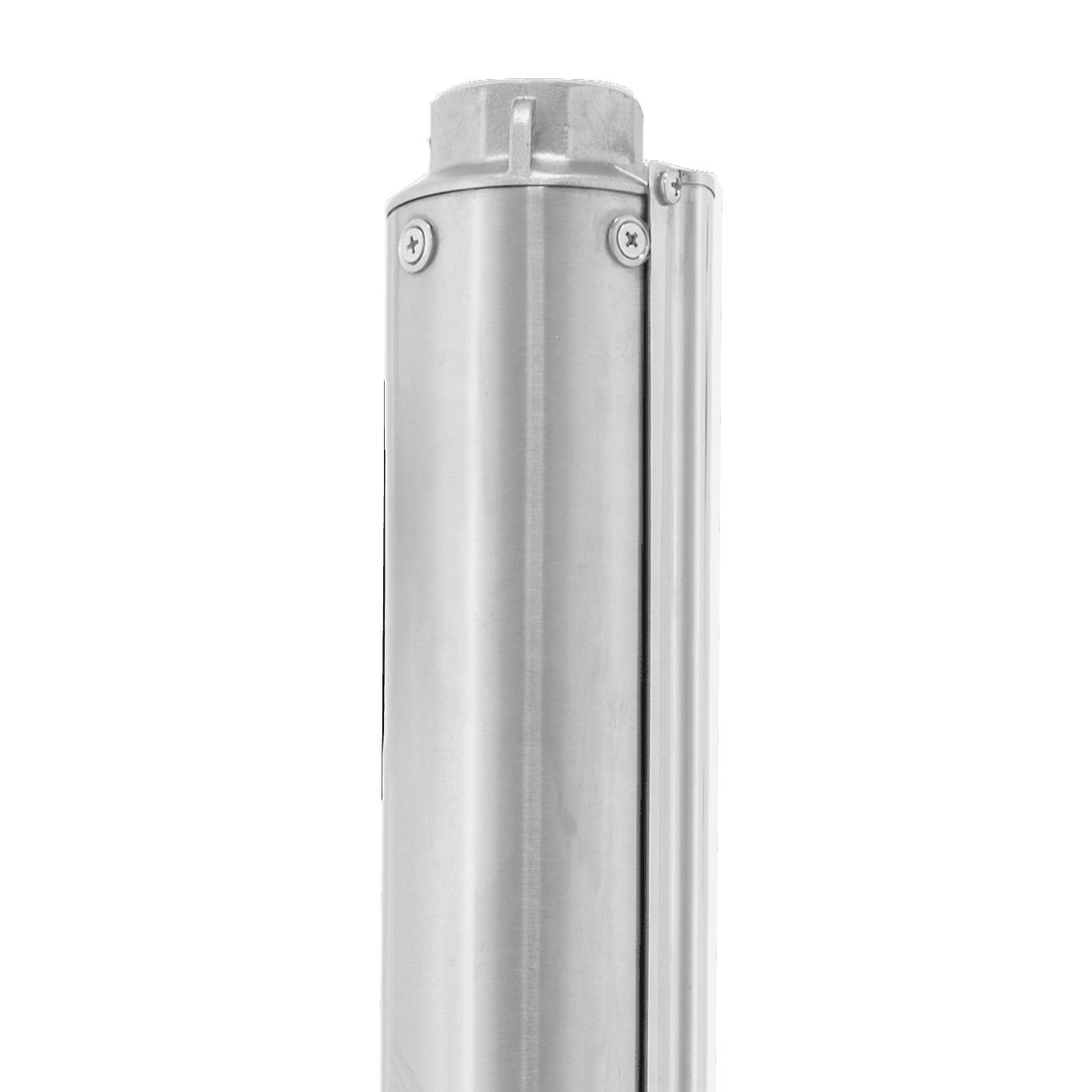

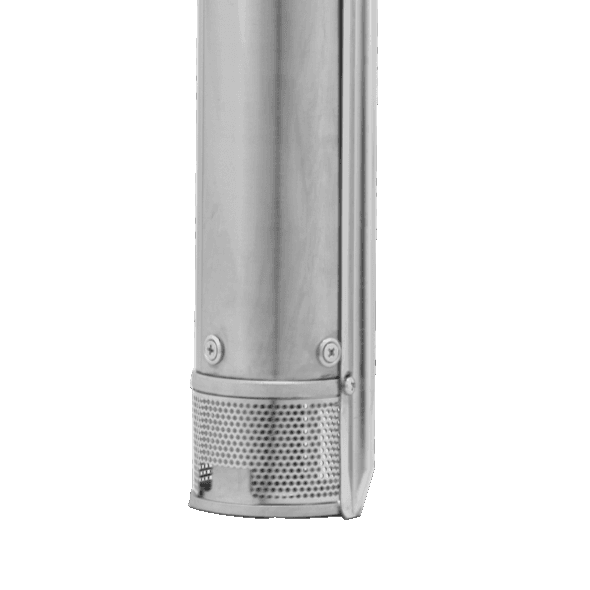

3" submersible pumps with floating impellers
Official partner3HDP е потопяема помпа на HyDrop с диаметър 3", подходяща за чиста и неагресивна вода. Проектирана за водоснабдяване от 3" сондажи, резервоари, напоителни и хидрофорни системи. Технологията с плаващи работни колела осигурява ефективна помпена производителност, лесна поддръжка и надеждна работа при различни условия.
Features

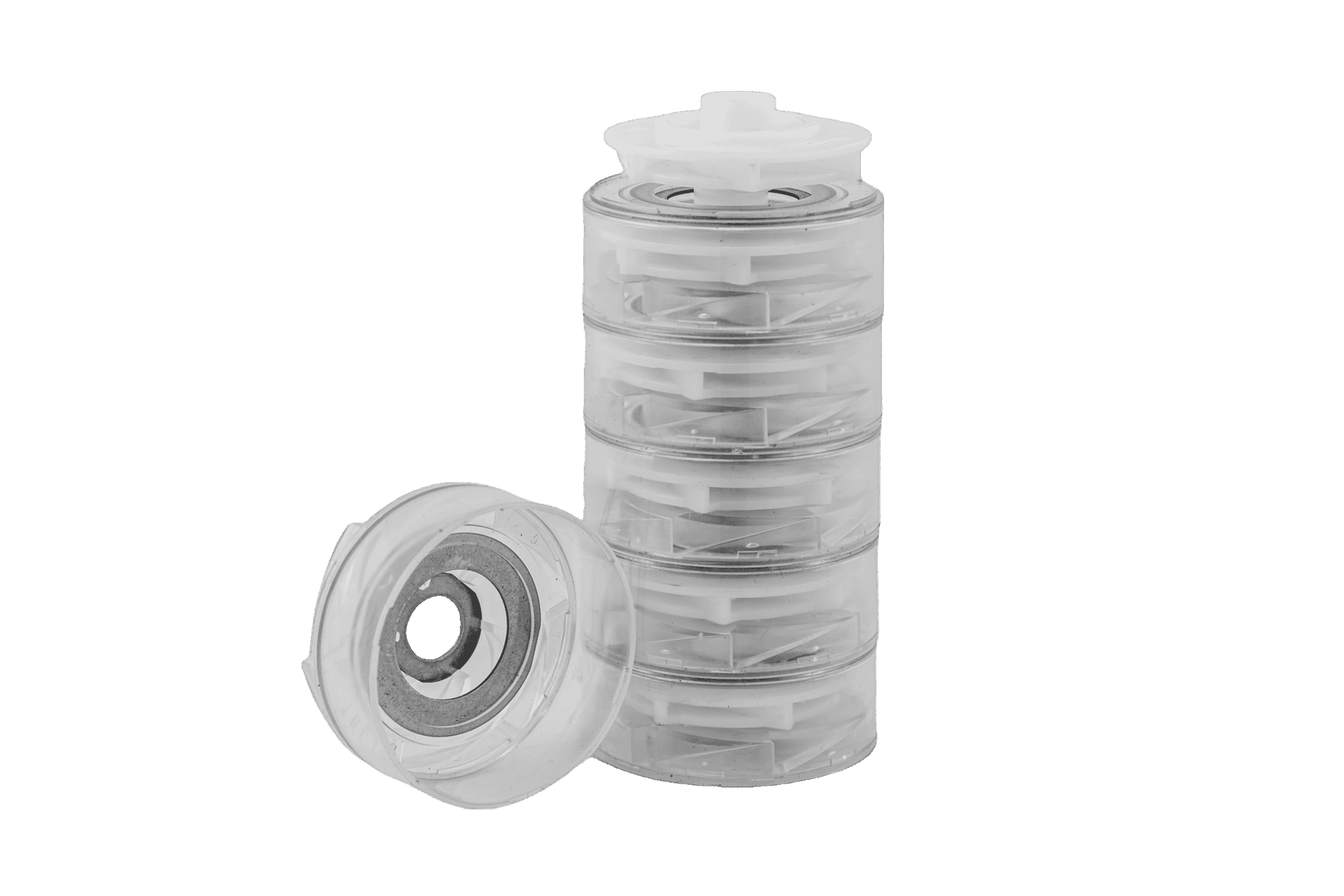

- Floating impeller technology
- Designed for clean, non-aggressive water
- Easy maintenance and minimal downtime
- Reliable operation under varying conditions
- Компактен 3" дизайн за тесни сондажи
Applications
Technical specifications
Series
3HDP-2
Flow rate: 2 m³/h
Power: 0.37–1.5 kW
Series
3HDP-3
Flow rate: 3 m³/h
Power: 0.55–2.2 kW
3HDP-2 — 50Hz
| Parameters | Q (m³/h) → H (m) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | kW | Stages | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | |
| 3HDP2-050 | 0.5 | 0.37 | 15 | 57 | 57 | 57 | 55 | 50 | 43 | 34 | 22 | |
| 3HDP2-075 | 0.75 | 0.55 | 21 | 80 | 80 | 80 | 75 | 68 | 59 | 47 | 30 | |
| 3HDP2-100 | 1.0 | 0.75 | 27 | 102 | 102 | 102 | 96 | 87 | 76 | 60 | 36 | |
| 3HDP2-150 | 1.5 | 1.1 | 39 | 148 | 148 | 148 | 140 | 128 | 112 | 85 | 56 | |
kW
0.37
Stages
15
Q 0
57 m
Q 0.5
57 m
Q 1
57 m
Q 1.5
55 m
Q 2
50 m
Q 2.5
43 m
Q 3
34 m
Q 3.5
22 m
kW
0.55
Stages
21
Q 0
80 m
Q 0.5
80 m
Q 1
80 m
Q 1.5
75 m
Q 2
68 m
Q 2.5
59 m
Q 3
47 m
Q 3.5
30 m
kW
0.75
Stages
27
Q 0
102 m
Q 0.5
102 m
Q 1
102 m
Q 1.5
96 m
Q 2
87 m
Q 2.5
76 m
Q 3
60 m
Q 3.5
36 m
kW
1.1
Stages
39
Q 0
148 m
Q 0.5
148 m
Q 1
148 m
Q 1.5
140 m
Q 2
128 m
Q 2.5
112 m
Q 3
85 m
Q 3.5
56 m
* H (m) — head in metres at the corresponding flow rate Q (m³/h). For full performance curves, get in touch.
Compatible motors
For installation with 3HDP we recommend the following HyDrop motors:
3HDA
Стандартен 3" потопяем мотор
3HDA2W
2-проводен 3" потопяем мотор
