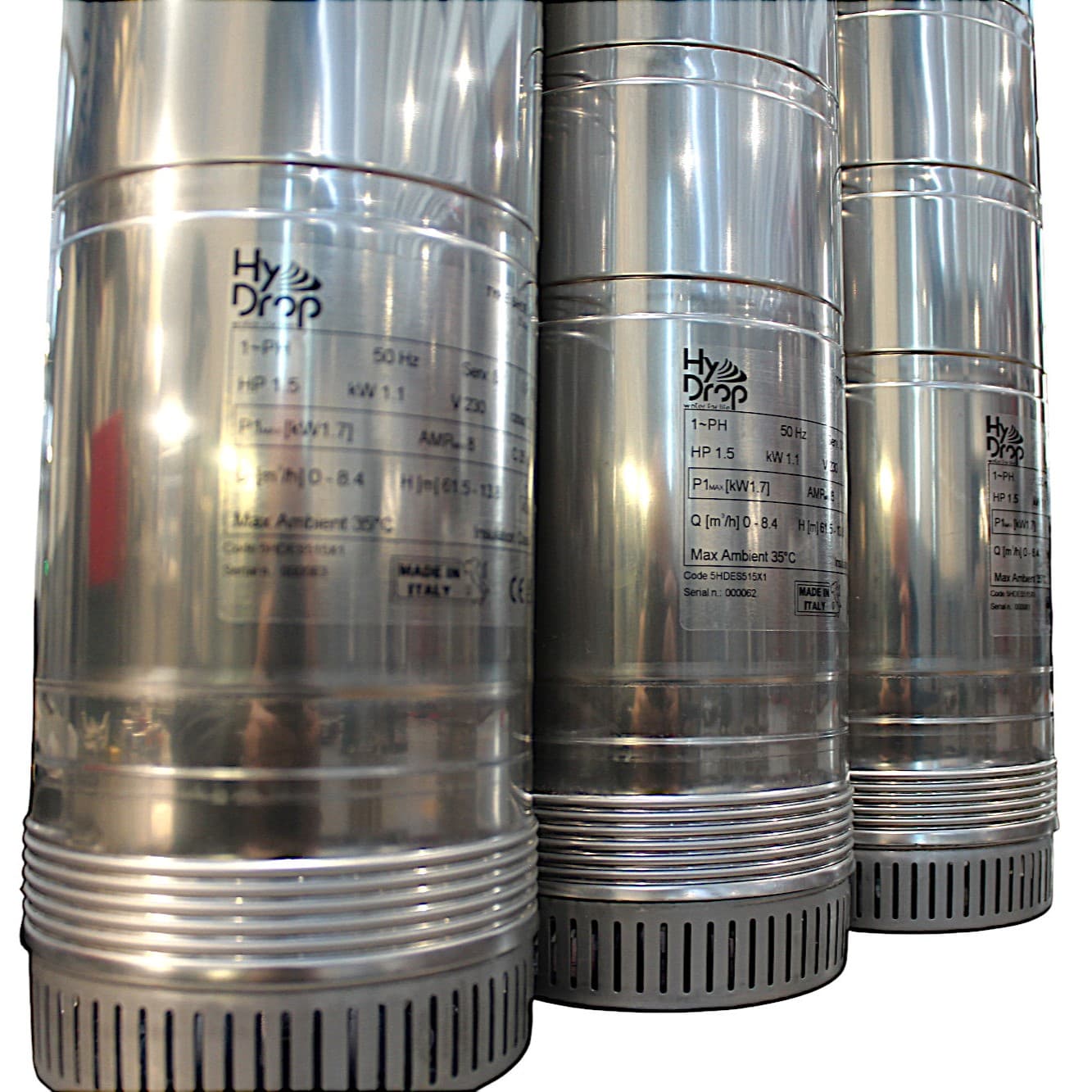

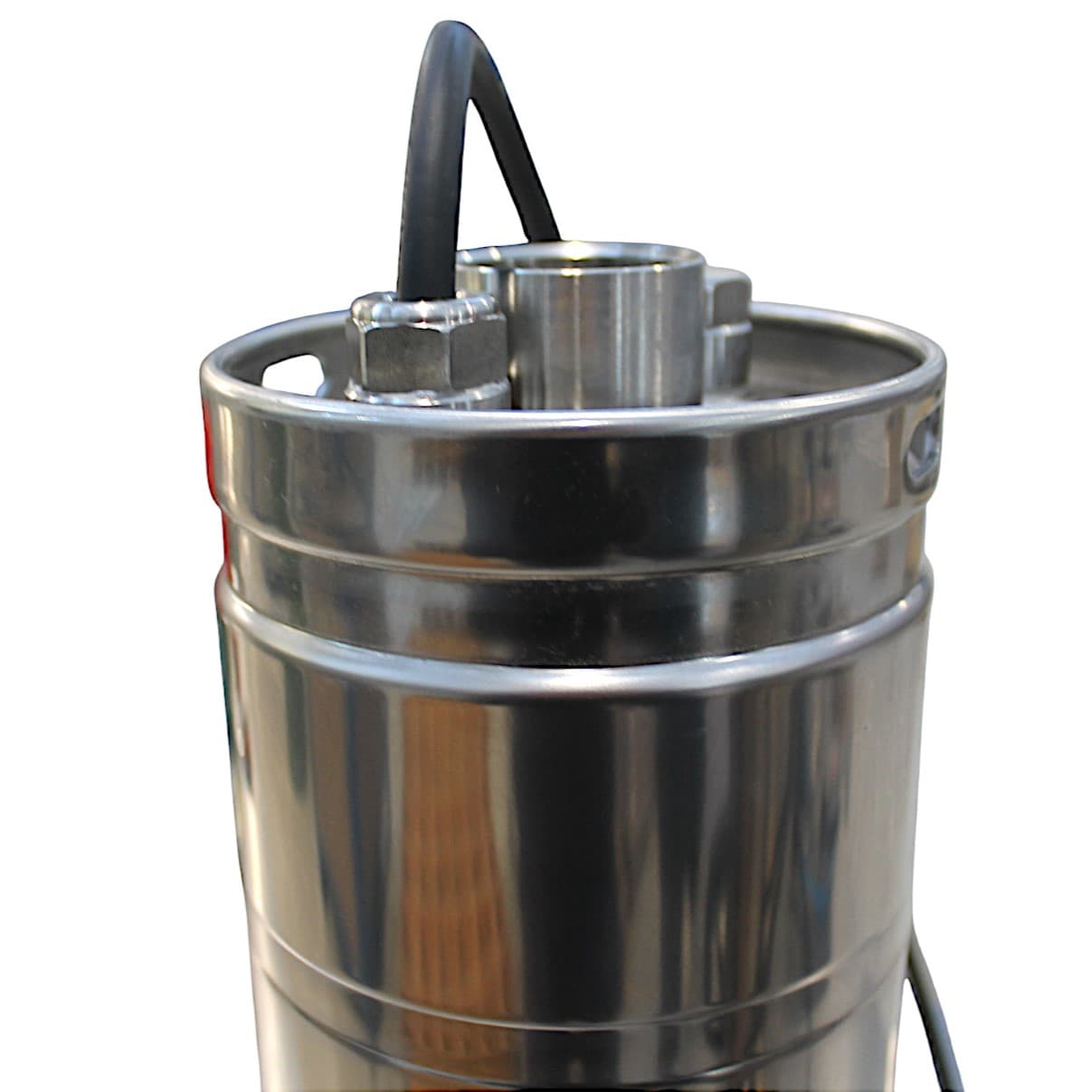

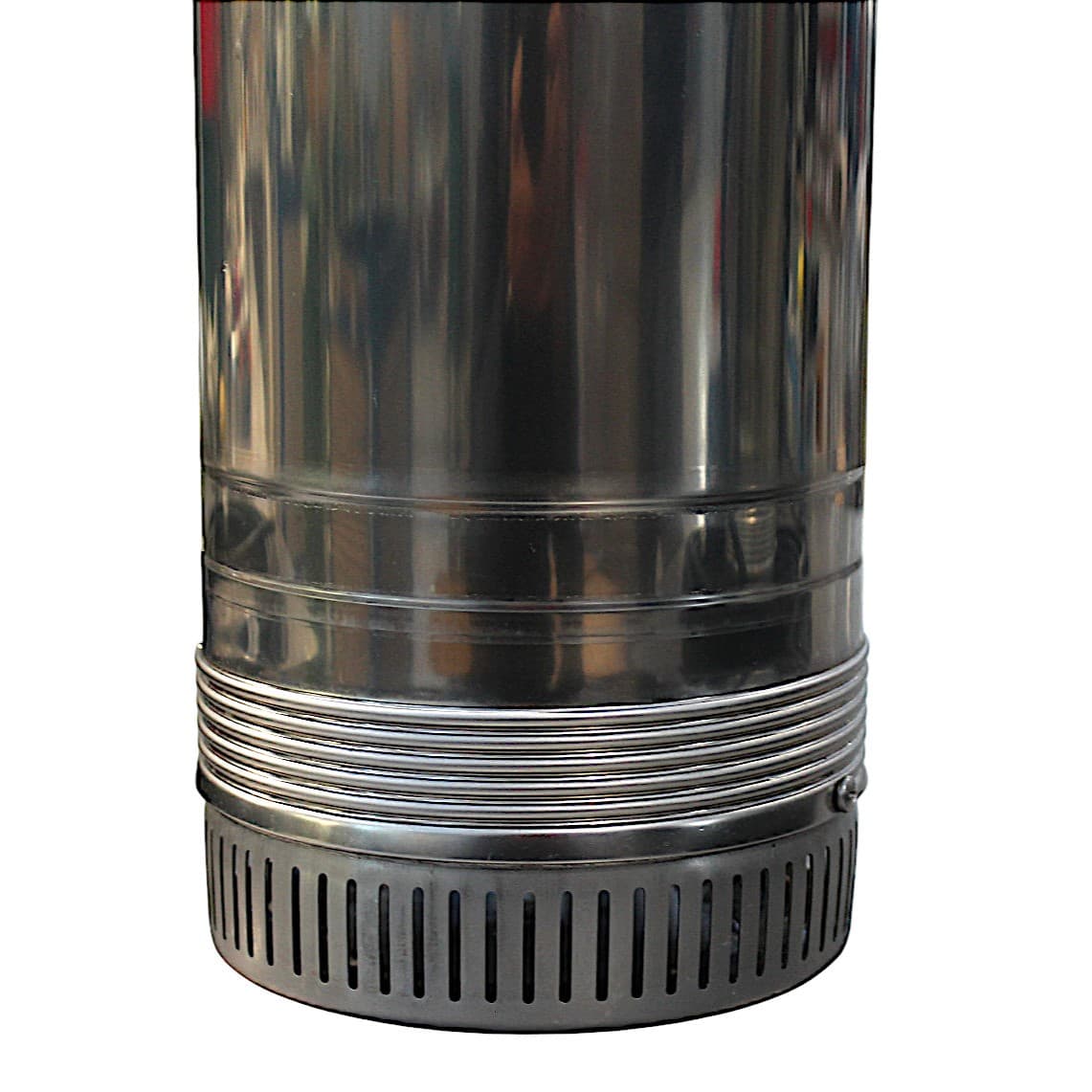

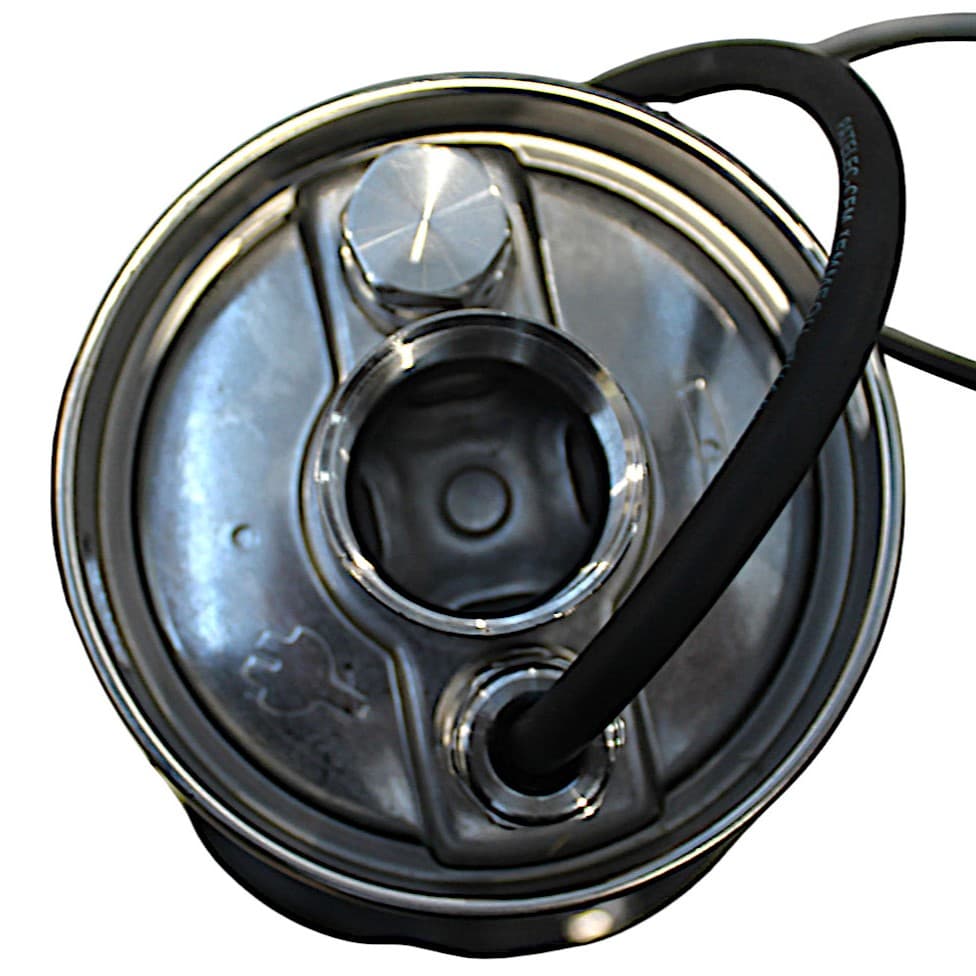

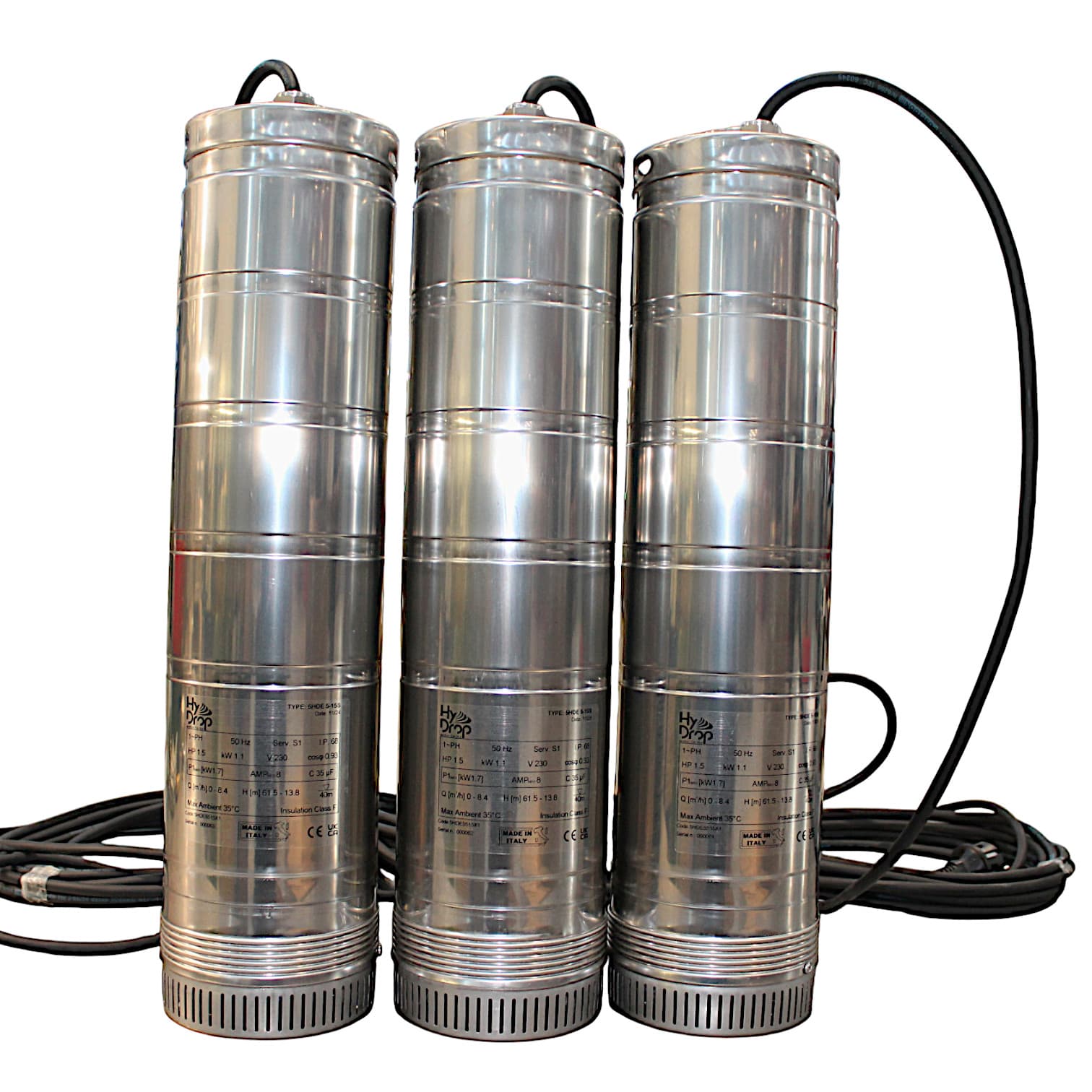

5HDE
5" high-efficiency submersible pumps
Official partner5HDE е високоефективна потопяема помпа на HyDrop с диаметър 5". Проектирана за по-големи дебити и дълбоки сондажи, тази помпа предлага отлична производителност при промишлено и селскостопанско водоснабдяване.
Features
- High efficiency and performance
- Suitable for deep boreholes
- Durable construction
- Optimised hydraulics
Applications
Technical specifications
Series
5HDE-12
Flow rate: 12 m³/h
Power: 1.5–5.5 kW
Series
5HDE-17
Flow rate: 17 m³/h
Power: 2.2–7.5 kW
| Parameters | Q (m³/h) → H (m) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | kW | A 1~230 | A 3~400 | 0 | 1.2 | 2.4 | 3.6 | 4.8 | |
| 5HDE 3-06S | 0.6 | 0.45 | 3.7 | - | 35.5 | 30 | 23.5 | 14.4 | 5.3 | |
| 5HDE 3-08S | 0.8 | 0.6 | 4 | - | 47.3 | 40 | 31.7 | 19.5 | 6.9 | |
| 5HDE 3-10S | 1 | 0.75 | 5.7 | - | 59.1 | 50.1 | 39 | 24.2 | 8.2 | |
| 5HDE 3-12S | 1.2 | 0.9 | 6.5 | - | 70.9 | 59.7 | 47 | 29.4 | 9.4 | |
| 5HDE 3-15S | 1.5 | 1.1 | 7.6 | - | 82.7 | 70 | 55.7 | 34 | 10.9 | |
| 5HDE 3-20S | 2 | 1.5 | 9.8 | - | 106.3 | 90 | 69.8 | 43.4 | 13.3 | |
kW
0.45
A 1~230
3.7
A 3~400
-
Q 0
35.5 m
Q 1.2
30 m
Q 2.4
23.5 m
Q 3.6
14.4 m
Q 4.8
5.3 m
kW
0.6
A 1~230
4
A 3~400
-
Q 0
47.3 m
Q 1.2
40 m
Q 2.4
31.7 m
Q 3.6
19.5 m
Q 4.8
6.9 m
kW
0.75
A 1~230
5.7
A 3~400
-
Q 0
59.1 m
Q 1.2
50.1 m
Q 2.4
39 m
Q 3.6
24.2 m
Q 4.8
8.2 m
kW
0.9
A 1~230
6.5
A 3~400
-
Q 0
70.9 m
Q 1.2
59.7 m
Q 2.4
47 m
Q 3.6
29.4 m
Q 4.8
9.4 m
kW
1.1
A 1~230
7.6
A 3~400
-
Q 0
82.7 m
Q 1.2
70 m
Q 2.4
55.7 m
Q 3.6
34 m
Q 4.8
10.9 m
kW
1.5
A 1~230
9.8
A 3~400
-
Q 0
106.3 m
Q 1.2
90 m
Q 2.4
69.8 m
Q 3.6
43.4 m
Q 4.8
13.3 m
| Parameters | Q (m³/h) → H (m) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | kW | A 1~230 | A 3~400 | 0 | 1.2 | 2.4 | 3.6 | 4.8 | |
| 5HDE 3-06T | 0.6 | 0.45 | 2.4 | 1.4 | 35.5 | 30 | 23.5 | 14.4 | 5.3 | |
| 5HDE 3-08T | 0.8 | 0.6 | 2.9 | 1.9 | 47.3 | 40 | 31.7 | 19.5 | 6.9 | |
| 5HDE 3-10T | 1 | 0.75 | 3.8 | 2.2 | 59.1 | 50.1 | 39 | 24.2 | 8.2 | |
| 5HDE 3-12T | 1.2 | 0.9 | 4.5 | 2.6 | 70.9 | 59.7 | 47 | 29.4 | 9.4 | |
| 5HDE 3-15T | 1.5 | 1.1 | 4.8 | 2.9 | 82.7 | 70 | 55.7 | 34 | 10.9 | |
| 5HDE 3-20T | 2 | 1.5 | 5.7 | 3.5 | 106.3 | 90 | 69.8 | 43.4 | 13.3 | |
kW
0.45
A 1~230
2.4
A 3~400
1.4
Q 0
35.5 m
Q 1.2
30 m
Q 2.4
23.5 m
Q 3.6
14.4 m
Q 4.8
5.3 m
kW
0.6
A 1~230
2.9
A 3~400
1.9
Q 0
47.3 m
Q 1.2
40 m
Q 2.4
31.7 m
Q 3.6
19.5 m
Q 4.8
6.9 m
kW
0.75
A 1~230
3.8
A 3~400
2.2
Q 0
59.1 m
Q 1.2
50.1 m
Q 2.4
39 m
Q 3.6
24.2 m
Q 4.8
8.2 m
kW
0.9
A 1~230
4.5
A 3~400
2.6
Q 0
70.9 m
Q 1.2
59.7 m
Q 2.4
47 m
Q 3.6
29.4 m
Q 4.8
9.4 m
kW
1.1
A 1~230
4.8
A 3~400
2.9
Q 0
82.7 m
Q 1.2
70 m
Q 2.4
55.7 m
Q 3.6
34 m
Q 4.8
10.9 m
kW
1.5
A 1~230
5.7
A 3~400
3.5
Q 0
106.3 m
Q 1.2
90 m
Q 2.4
69.8 m
Q 3.6
43.4 m
Q 4.8
13.3 m
| Parameters | Q (m³/h) → H (m) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | kW | A 1~230 | A 3~400 | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | |
| 5HDE 5-08S | 0.8 | 0.6 | 4.2 | - | 38.7 | 35.9 | 32.9 | 29.2 | 24.6 | 19.1 | 13.9 | 8.2 | |
| 5HDE 5-12S | 1.2 | 0.9 | 6.4 | - | 51.8 | 47.8 | 43.9 | 38.8 | 32.8 | 26 | 18.9 | 11.2 | |
| 5HDE 5-15S | 1.5 | 1.1 | 8 | - | 64.5 | 59.8 | 54.8 | 49.3 | 40.9 | 32.2 | 23.3 | 13.8 | |
| 5HDE 5-20S | 2 | 1.5 | 9.15 | - | 77.4 | 71.8 | 65.7 | 58 | 49 | 38.9 | 28 | 16.3 | |
kW
0.6
A 1~230
4.2
A 3~400
-
Q 0
38.7 m
Q 1.2
35.9 m
Q 2.4
32.9 m
Q 3.6
29.2 m
Q 4.8
24.6 m
Q 6
19.1 m
Q 7.2
13.9 m
Q 8.4
8.2 m
kW
0.9
A 1~230
6.4
A 3~400
-
Q 0
51.8 m
Q 1.2
47.8 m
Q 2.4
43.9 m
Q 3.6
38.8 m
Q 4.8
32.8 m
Q 6
26 m
Q 7.2
18.9 m
Q 8.4
11.2 m
kW
1.1
A 1~230
8
A 3~400
-
Q 0
64.5 m
Q 1.2
59.8 m
Q 2.4
54.8 m
Q 3.6
49.3 m
Q 4.8
40.9 m
Q 6
32.2 m
Q 7.2
23.3 m
Q 8.4
13.8 m
kW
1.5
A 1~230
9.15
A 3~400
-
Q 0
77.4 m
Q 1.2
71.8 m
Q 2.4
65.7 m
Q 3.6
58 m
Q 4.8
49 m
Q 6
38.9 m
Q 7.2
28 m
Q 8.4
16.3 m
| Parameters | Q (m³/h) → H (m) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | kW | A 1~230 | A 3~400 | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | |
| 5HDE 5-08T | 0.8 | 0.6 | 4 | 2.1 | 38.7 | 35.9 | 32.9 | 29.2 | 24.6 | 19.1 | 13.9 | 8.2 | |
| 5HDE 5-12T | 1.2 | 0.9 | 4.4 | 2.5 | 51.8 | 47.8 | 43.9 | 38.8 | 32.8 | 26 | 18.9 | 11.2 | |
| 5HDE 5-15T | 1.5 | 1.1 | 4.9 | 3 | 64.5 | 59.8 | 54.8 | 49.3 | 40.9 | 32.2 | 23.3 | 13.8 | |
| 5HDE 5-20T | 2 | 1.5 | 5.7 | 3.7 | 77.4 | 71.8 | 65.7 | 58 | 49 | 38.9 | 28 | 16.3 | |
kW
0.6
A 1~230
4
A 3~400
2.1
Q 0
38.7 m
Q 1.2
35.9 m
Q 2.4
32.9 m
Q 3.6
29.2 m
Q 4.8
24.6 m
Q 6
19.1 m
Q 7.2
13.9 m
Q 8.4
8.2 m
kW
0.9
A 1~230
4.4
A 3~400
2.5
Q 0
51.8 m
Q 1.2
47.8 m
Q 2.4
43.9 m
Q 3.6
38.8 m
Q 4.8
32.8 m
Q 6
26 m
Q 7.2
18.9 m
Q 8.4
11.2 m
kW
1.1
A 1~230
4.9
A 3~400
3
Q 0
64.5 m
Q 1.2
59.8 m
Q 2.4
54.8 m
Q 3.6
49.3 m
Q 4.8
40.9 m
Q 6
32.2 m
Q 7.2
23.3 m
Q 8.4
13.8 m
kW
1.5
A 1~230
5.7
A 3~400
3.7
Q 0
77.4 m
Q 1.2
71.8 m
Q 2.4
65.7 m
Q 3.6
58 m
Q 4.8
49 m
Q 6
38.9 m
Q 7.2
28 m
Q 8.4
16.3 m
* H (m) — head in metres at the corresponding flow rate Q (m³/h). For full performance curves, get in touch.
Compatible motors
For installation with 5HDE we recommend the following HyDrop motors:
5HDA
Стандартен 5" потопяем мотор
