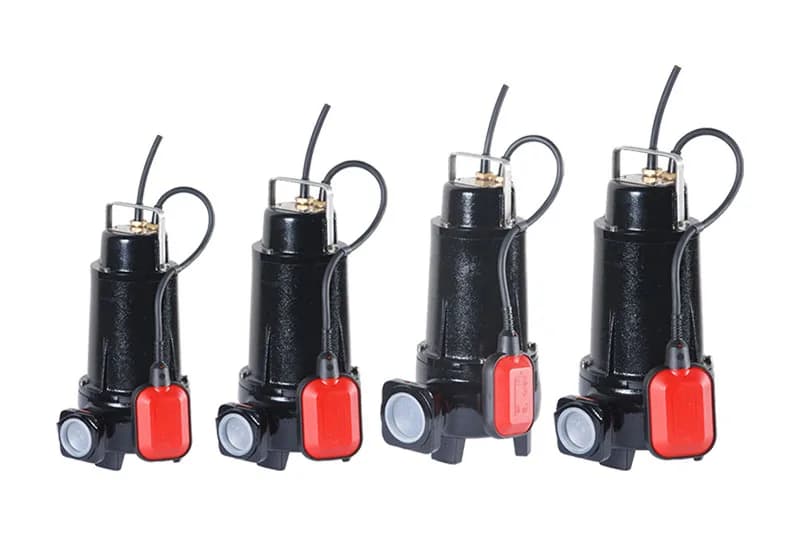

Conforto VRX
Submersible pump with a vortex impeller, 0.37–2.2 kW
Official partnerConforto VRX are two-pole submersible pumps with a vortex impeller for clean or dirty water. The vortex hydraulics keep solids away from the impeller, which allows a passage of up to 45 mm without clogging. They suit lifting fluids from tanks and rainwater traps, cellars and drying out underpasses. Eight sizes, including compact R versions. They are made of G20 cast iron, with an AISI 416 stainless steel shaft and a silicon carbide/alumina seal.
Features
- Vortex impeller — does not clog
- Solids from 25 to 45 mm
- Eight sizes, including compact R versions
- Flow rate of up to 54.9 m³/h (915 l/min)
- Build entirely of G20 cast iron
- AISI 416 stainless steel shaft and stainless steel screws
- Operation up to 60 °C continuous and up to 90 °C intermittent
- Fully watertight motor — IP68 protection rating
Applications
Pumping dirty waterTanks and rainwater trapsCellars and underpassesShipbuilding and industry
Technical specifications
Key parameters
ManufacturerConforto (Italy)
SeriesVRX (M — single-phase, T — three-phase)
TypeSubmersible pump with a vortex impeller
Power0.37 – 2.2 kW (0.5 – 3 HP)
Maximum head13 m
Maximum flow rate54.9 m³/h (915 l/min)
Max. particle size25 – 45 mm depending on the model
Operating conditions
Max. liquid temperature60 °C continuous / 90 °C intermittent
Max. fluid density1100 kg/m³
Min. pumping level10 cm above the pump body
Voltage (single-phase)230–240 V, 50 Hz
Voltage (three-phase)230/400 V, 50 Hz
Protection ratingIP68
Insulation classF
Materials
Impeller materialG20 cast iron
Body materialG20 cast iron
Shaft materialAISI 416 stainless steel
SealMechanical, silicon carbide/alumina
Connections and supply
OutletThreaded 1" 1/4 – 2"
Cable5 – 10 m H07 RN-F
Weight11 – 30 kg
Available modelsVRX 50/32, 80/40, 100/40, 150/50 R, 150/50, 200/50, 300/50 (M/T), VRX 200/50 R (T)
