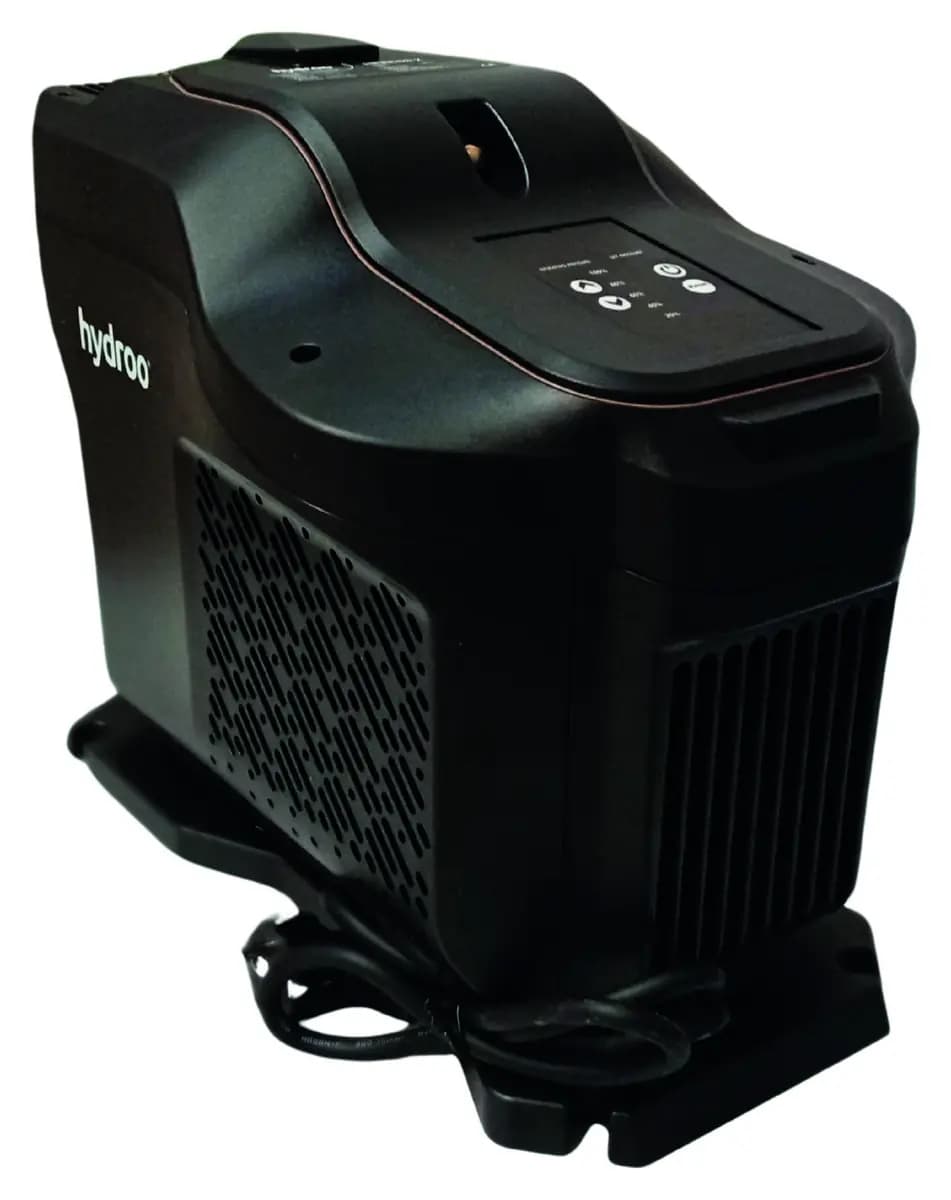

Hydroo HPRESS, Booster pump with inverter and IE5 motor — up to 20 m³/h and 68 m

HPRESS 45 · 65 · 6 · 8

Hydroo HPRESS

Booster pump with inverter and IE5 motor — up to 20 m³/h and 68 m

Manufacturer: Hydroo

Hydroo HPRESS is a multistage horizontal stainless steel centrifugal pump with a built-in frequency inverter and an IE5 permanent magnet synchronous motor. It keeps the pressure constant in the plumbing of houses, flats and commercial premises and runs very quietly, below 50 dB(A), so it can be installed in small indoor spaces. It works automatically with a simple LCD display and has full motor protection. The series has 4 models from 0.75 to 2.2 kW, with flow up to 20 m³/h and head up to 68 m, and HPRESS 45 and 65 are self-priming up to 8 m.

Maximum head
68 m
Maximum flow rate
20 m³/h
Power P2
0.75–2.2 kW
Request a quote0886 834 717

Price and delivery time on request. Working hours: Mon–Fri, 8:30–17:00

Features

What Hydroo HPRESS offers

  • Built-in frequency inverter for constant pressure
  • IE5 permanent magnet synchronous motor
  • Very quiet, below 50 dB(A)
  • Self-priming up to 8 m (HPRESS 45 and 65)
  • AISI 304 pump casing and impellers
  • Protection against dry running, overload, leakage and overheating
  • Easy operation with an LCD display
  • Up to 6 pumps in cascade

Applications

Where it is used

  • Domestic water supply
  • Pressure boosting
  • Gardens and irrigation
  • Commercial premises
Supply, installation and servicePumps and pressure systems

Technical data

Hydroo HPRESS specifications

Key parameters

Model
HPRESS 45, 65, 6, 8
Pump type
Horizontal multistage centrifugal
Maximum flow rate
20 m³/h
Maximum head
68 m
Self-priming
up to 8 m (HPRESS 45 and 65)
Group operation
up to 6 pumps in cascade

Electrical data

Power P2
0.75–2.2 kW
Voltage
1 × 160–260 V
Frequency
50/60 Hz
Speed range
2900–5000 rpm
Motor
Permanent magnet synchronous, IE5
Control
Built-in frequency inverter, LCD display
Protection
Dry running, overload, leakage, overheating

Operating conditions

Liquid temperature
up to +40 °C
Noise level
below 50 dB(A)
Pumped medium
Clean, non-flammable and non-explosive liquid

Connections and dimensions

Connection (inlet)
G1" to G2" depending on the model
Connection (outlet)
G1" to G2" depending on the model

Materials

Pump body
AISI 304 stainless steel
Impellers
AISI 304 stainless steel
Diffusers
Technopolymer

Models

ModelP2 (kW)Q max (m³/h)H max (m)Rated flow (m³/h)Rated pressure (m)Suction diameter (mm)Self-priming
HPRESS 450.755.4542.53450up to 8 m
HPRESS 651.19.55944250up to 8 m
HPRESS 61.516606.54550-
HPRESS 82.2206886050-

Installation dimensions (mm)

ModelDN1 (M)DN2 (F)L1L2L3HH1H2WW1W2W3
HPRESS 45G1"G1"60310390320150300260123170190
HPRESS 65G1 1/4"G1 1/4"110310390320150300260123170190
HPRESS 6G2"G2"120287500380154370200195195223
HPRESS 8G2"G2"120287500380154370200195195223

Charts and drawings

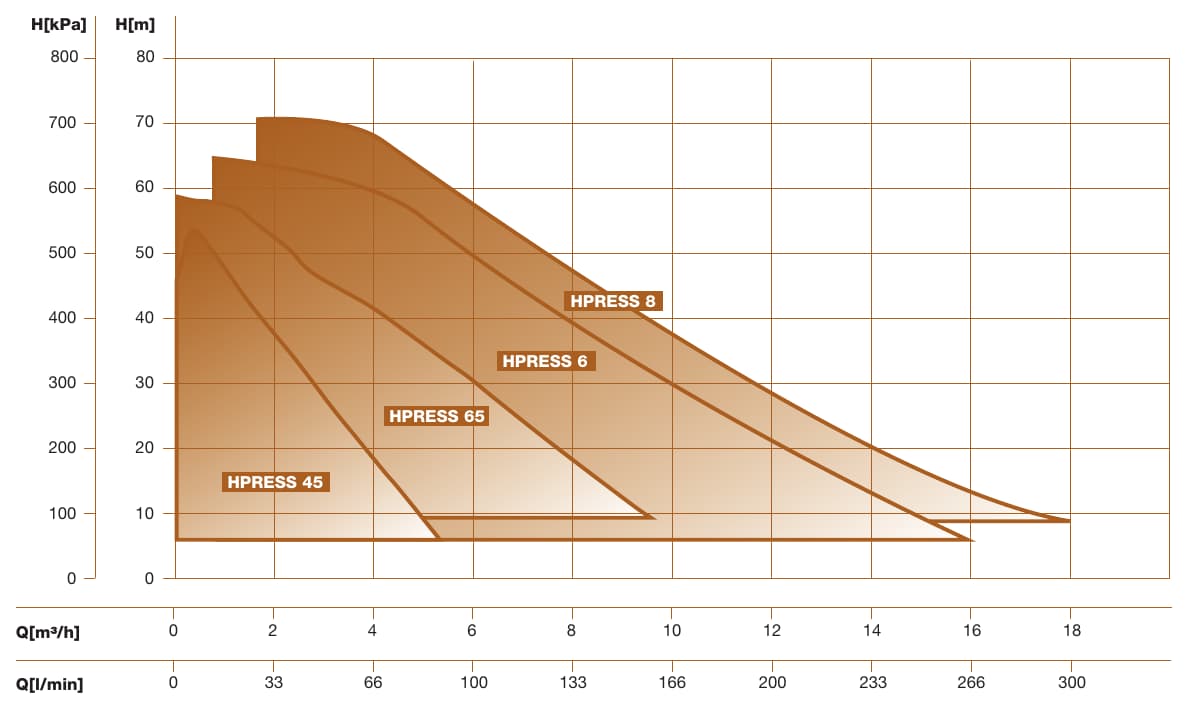

Performance range
Performance rangeHead H in metres and kPa against flow Q in m³/h and l/min for the four models, at 2950 rpm and 50 Hz, to ISO 9906:2012, grade 3B.

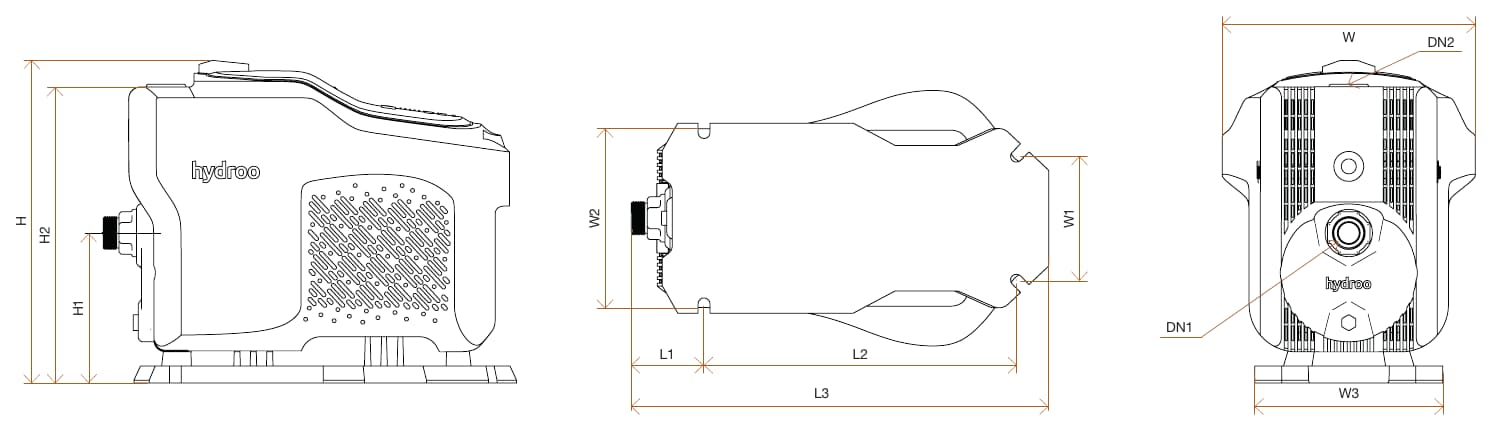

Installation sketch
Installation sketchThe labels match the installation dimensions table. DN1 is the inlet, DN2 is the outlet.
  • Single-phase permanent magnet motor, 160–260 V, 50/60 Hz: HPRESS 45 is 0.75 kW, HPRESS 65 is 1.1 kW, HPRESS 6 is 1.5 kW, HPRESS 8 is 2.2 kW.
  • HPRESS pumps can work in sets of up to 6 connected in cascade. Contact us about the manifold, accessories and special versions.
