HS203E · HS404E · HS804E

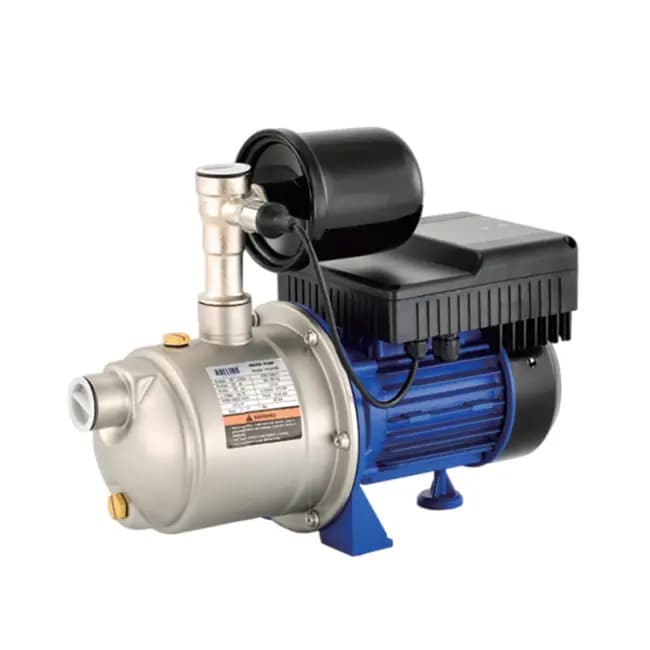

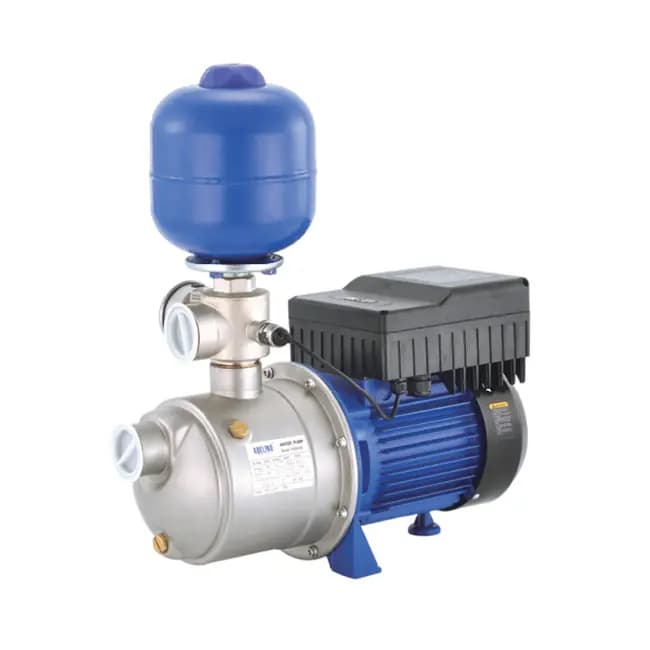

Adelino HS-E

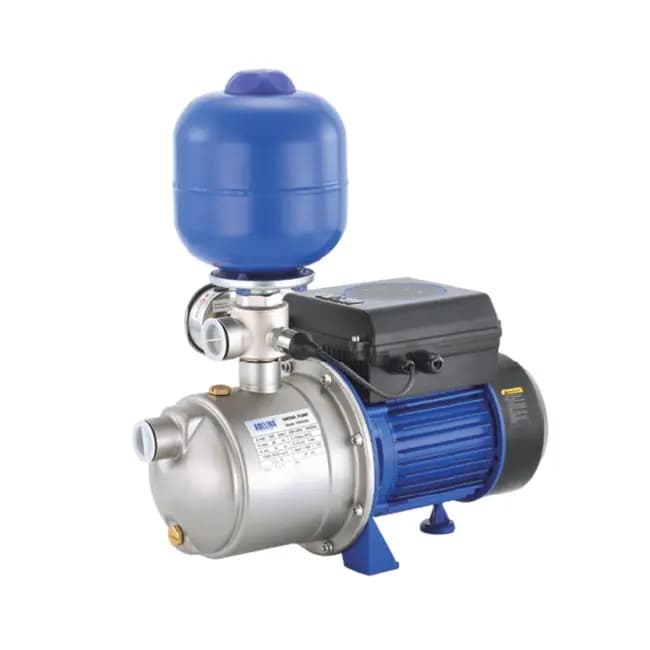

Booster pump with a frequency inverter — up to 14 m³/h and 45 m
Manufacturer: Adelino
Adelino HS-E is a fully integrated pump with a frequency inverter for constant pressure in the plumbing. One body holds the inverter, a multistage horizontal centrifugal pump with a stainless steel casing and a pressure tank. The pump adjusts its speed to the demand, so the pressure in the pipes stays constant and the system runs quietly, steadily and on less power. The series has 3 models from 0.37 to 1.5 kW, with flow up to 14 m³/h and head up to 45 m, and HS203E and HS404E also come in a hot water version up to 90 °C.
- Maximum head
- 45 m
- Maximum flow rate
- 14 m³/h
- Power
- 0.37–1.5 kW
Price and delivery time on request. Working hours: Mon–Fri, 8:30–17:00
Features
What Adelino HS-E offers
- Built-in frequency inverter for constant pressure
- Synchronous motor, 1000–3000 rpm
- Pump body in 304 stainless steel
- Quiet, stable operation
- Compact, easy to install and set up
- R version for hot water up to 90 °C
Applications
Where it is used
- Houses and villas
- Residential buildings
- Schools
- Small commercial premises
Technical data
Adelino HS-E specifications
Key parameters
- Model
- HS203E(R), HS404E(R), HS804E
- Pump type
- Horizontal multistage centrifugal with frequency inverter
- Maximum flow rate
- 14 m³/h
- Maximum head
- 45 m
- Self-priming
- up to 7 m
Electrical data
- Power
- 0.37–1.5 kW
- Voltage
- 1 × 220 V ±10%
- Frequency
- 50 Hz
- Speed range
- 1000–3000 rpm
- Protection rating (pump)
- IPX5
- Insulation class
- F
- Motor
- Synchronous, with frequency inverter
Operating conditions
- Liquid temperature
- 0–60 °C, R version up to 90 °C
- Liquid pH
- 6.5–8.5
- Solid particles
- up to 0.1% by volume, up to 0.2 mm
- Pumped medium
- Clean water and liquids with similar properties
Connections and dimensions
- Connection (inlet)
- DN25 (HS203E, HS404E), DN40 (HS804E)
- Connection (outlet)
- DN25 (HS203E, HS404E), DN40 (HS804E)
Materials
- Pump body
- 304 stainless steel
- Impellers
- Plastic
- Stator housing
- Aluminium
Models
| Model | kW | HP | Q max (m³/h) | H max (m) | Head range (m) | Max. suction (m) |
|---|---|---|---|---|---|---|
| HS203E(R) | 0.37 | 0.5 | 5 | 32 | 30–10 | 7 |
| HS203E (115/230 V, 50/60 Hz) | 0.37 | 0.5 | 5 | 32 | 30–10 | 7 |
| HS404E(R) | 0.75 | 1 | 9 | 45 | 40–10 | 7 |
| HS404E (115/230 V, 50/60 Hz) | 0.75 | 1 | 9 | 45 | 40–10 | 7 |
| HS804E | 1.5 | 2 | 14 | 45 | 40–10 | 7 |
Bearings, shaft and materials
| HS203E(R) | HS404E(R) | HS804E | |
|---|---|---|---|
| End cap bearing | 6201-2RZ | 6202-2RZ | 6204-2RZ |
| Connection part bearing | 6201-2RZ | 6203-2RZ | 6204-2RZ |
| Motor shaft | 420# | 420# | 45# + 304# |
| Mechanical seal | 108-12/21 & S:A(RC), static ring 26 | 108-14/25 & S:A(PC), static ring 28 | 108-16/25 & S:A(PC), static ring 30 |
| Motor case | Aluminium | Aluminium | Aluminium |
| Coupling | Aluminium | Aluminium | Aluminium |
| Pump body | 304# | 304# | 304# |
| Impeller | Plastic | Plastic | Plastic |
Packed dimensions and weight
| Model | L × W × H (mm) | Net (kg) | Gross (kg) |
|---|---|---|---|
| HS203E(R) | 390 × 195 × 320 | 9.0 | 9.5 |
| HS203E (115/230 V, 50/60 Hz) | 415 × 210 × 320 | 9.5 | 10 |
| HS404E(R) | 450 × 235 × 475 | 13.7 | 15.3 |
| HS404E (115/230 V, 50/60 Hz) | 460 × 235 × 485 | 15.0 | 16.6 |
| HS804E | 510 × 240 × 530 | 18.8 | 20.7 |

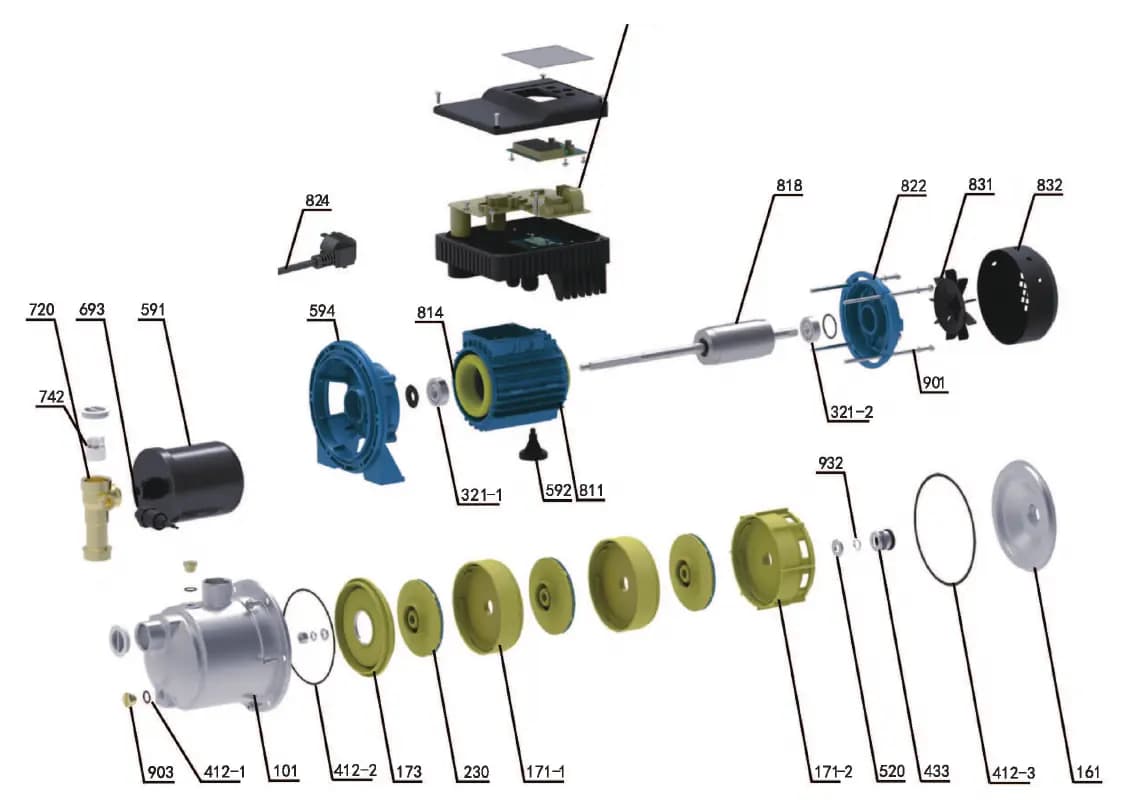

Parts
| № | Part |
|---|---|
| 101 | Pump body |
| 161 | Pump cover |
| 171-1 | Guide vane |
| 171-2 | Rear guide vane |
| 173 | Front guide vane cover plate |
| 230 | Impeller |
| 321-1 | Deep groove ball bearing |
| 321-2 | Deep groove ball bearing |
| 412-1 | O-ring |
| 412-2 | O-ring |
| 412-3 | O-ring |
| 433 | Mechanical seal |
| 520 | Shaft bush |
| 591 | Pressure tank |
| 592 | Foot |
| 594 | Connector |
| 693 | Pressure sensor |
| 720 | Four-way connector |
| 742 | Non-return valve |
| 811 | Motor case |
| 814 | Stator core with winding |
| 818 | Rotor |
| 822 | Rear end cover |
| 824 | Cable |
| 831 | Fan QB60 |
| 832 | Fan cover |
| 833 | PX203E frequency controller |
| 900 | Hexagon head bolt |
| 903 | Vent cock |
| 932 | Shaft circlip |

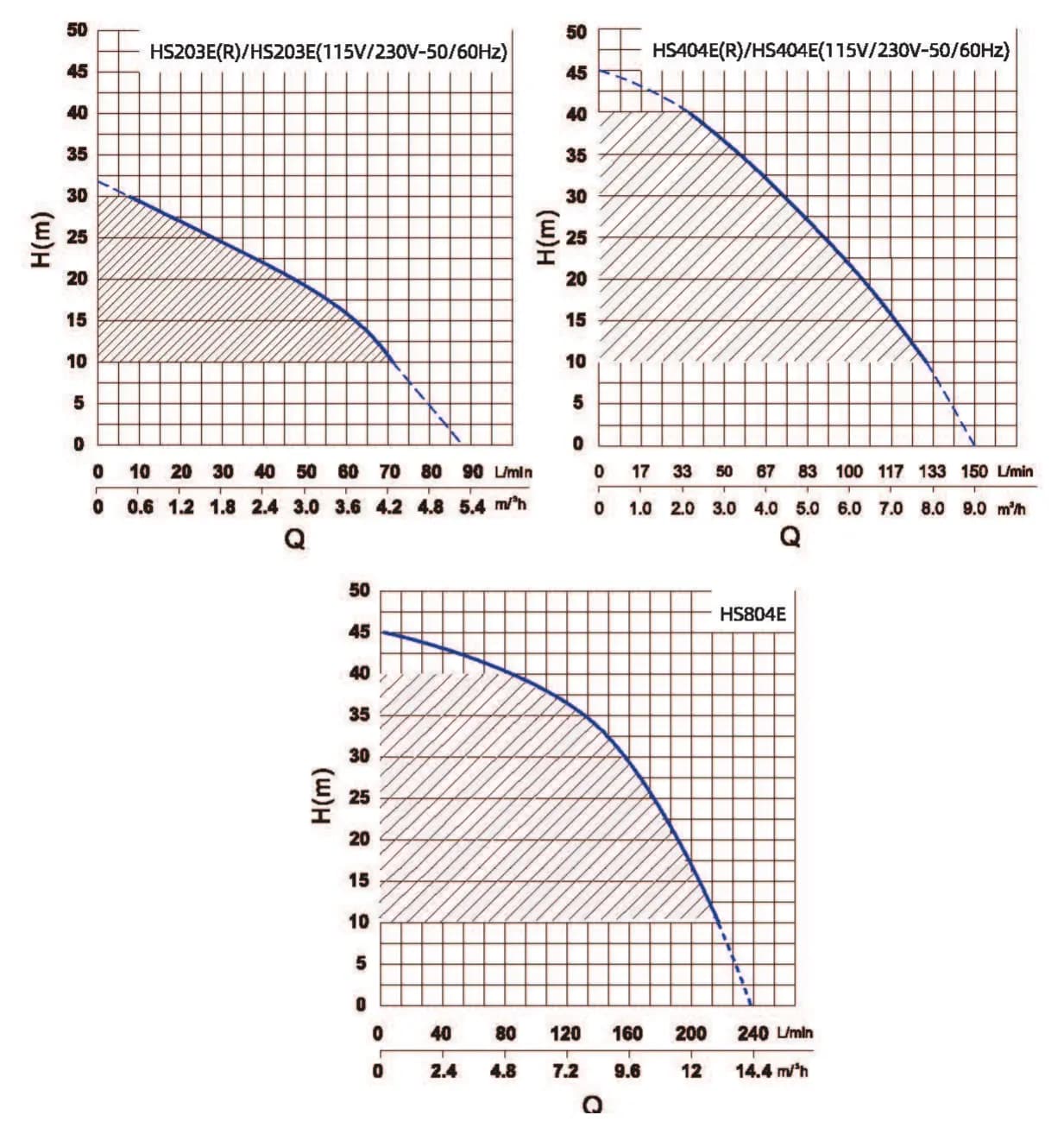

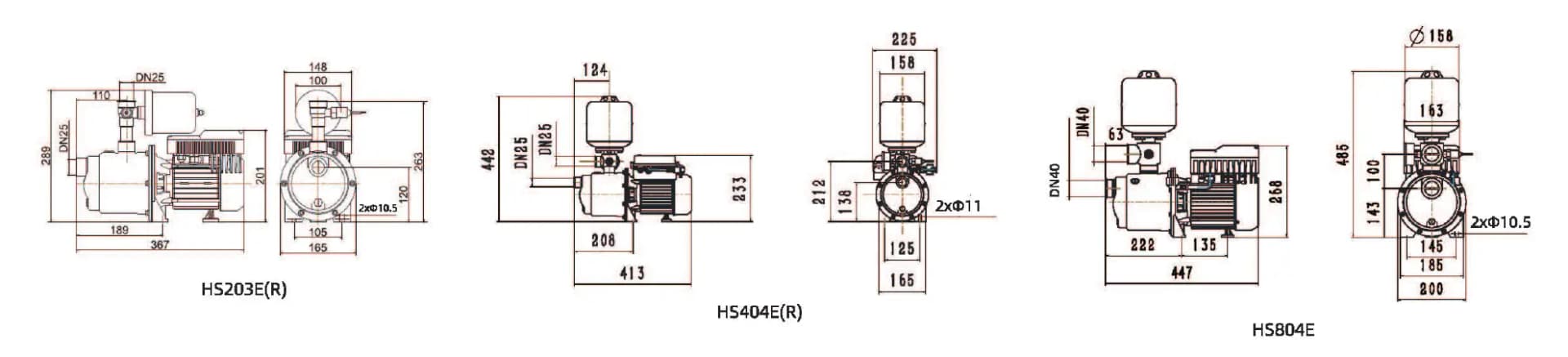

Charts and drawings
- Model code HS404E(R): HS is a multistage horizontal centrifugal pump, E is the frequency-controlled series, R is the hot water version.
- HS203E and HS404E are also available for 115 V or 230 V, 50/60 Hz.
