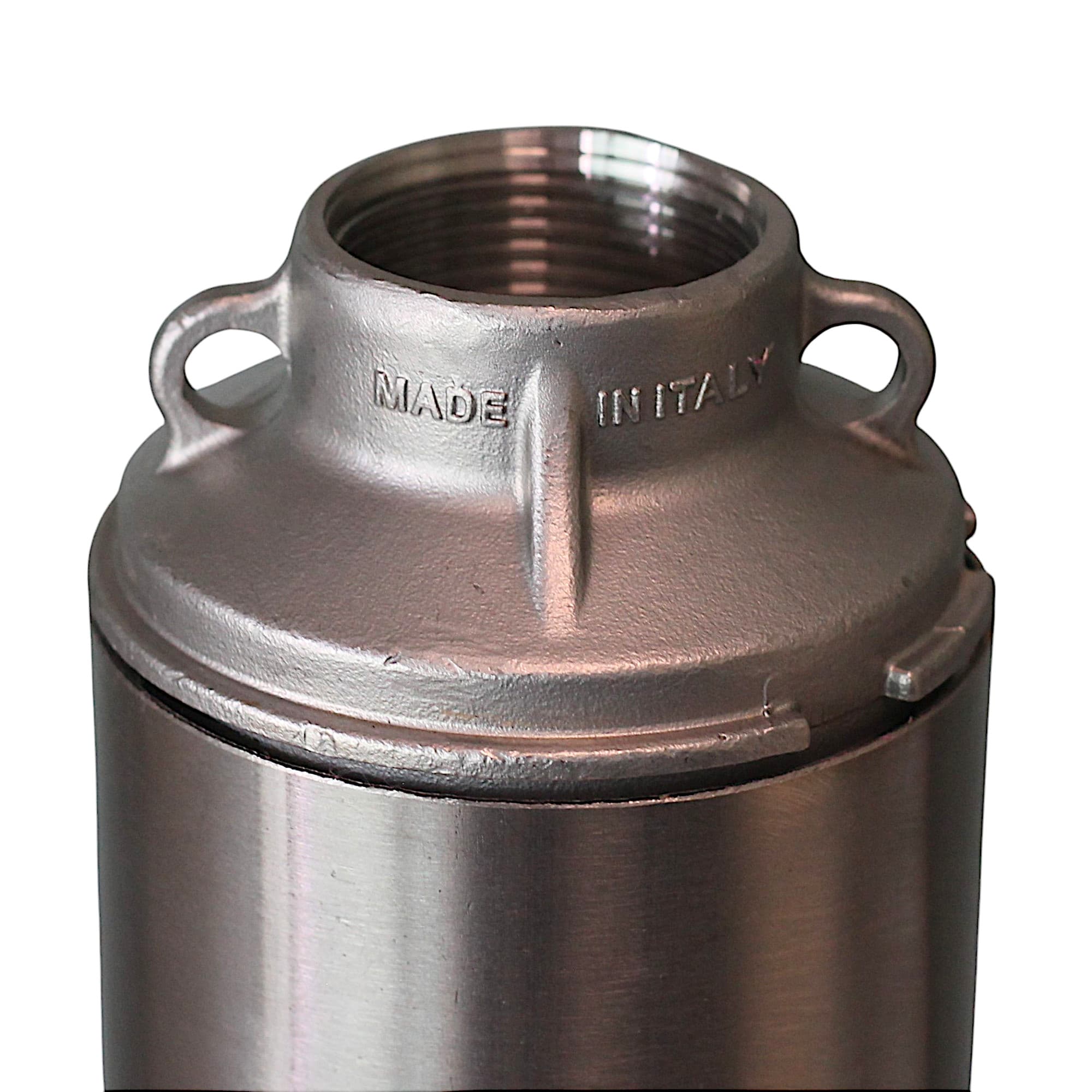

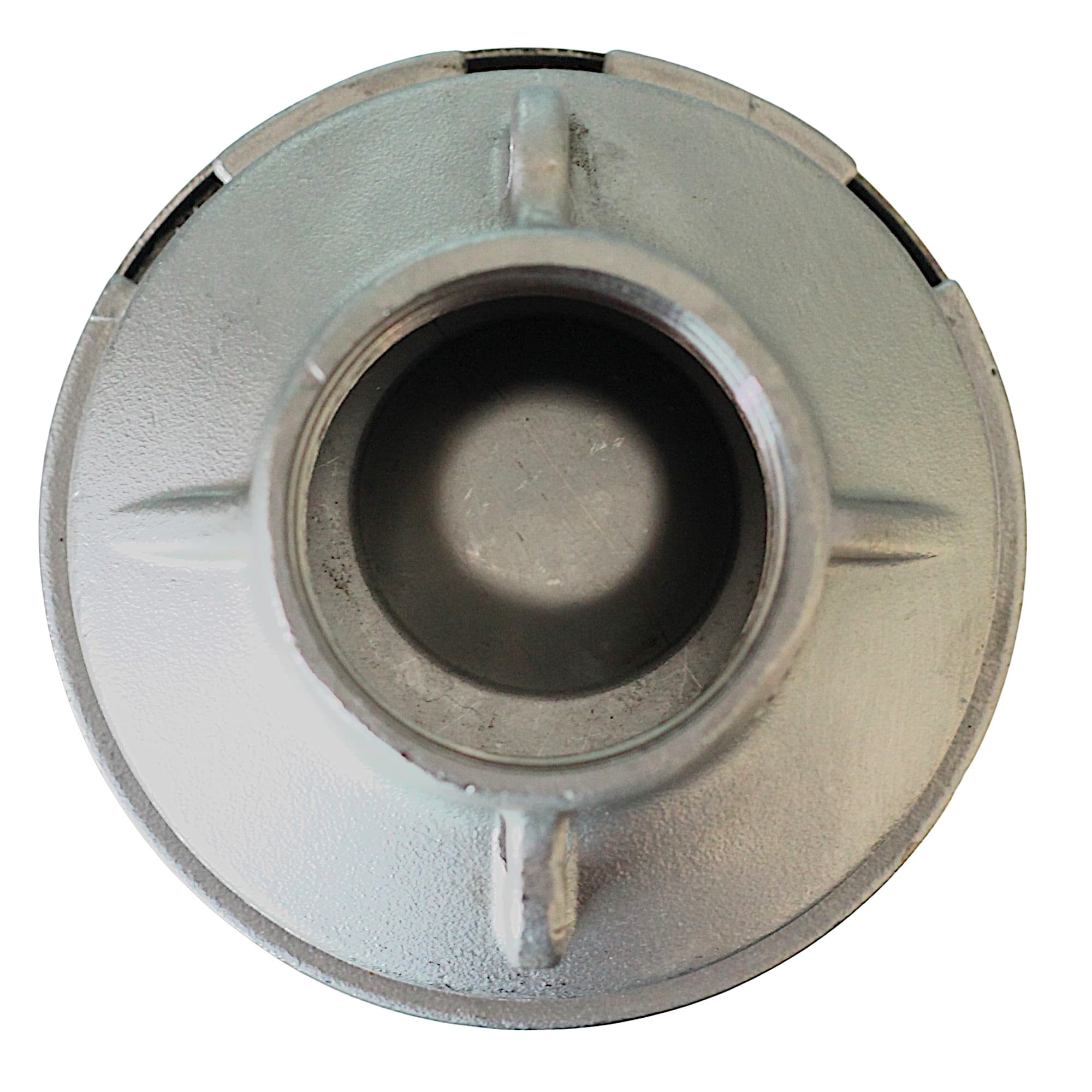

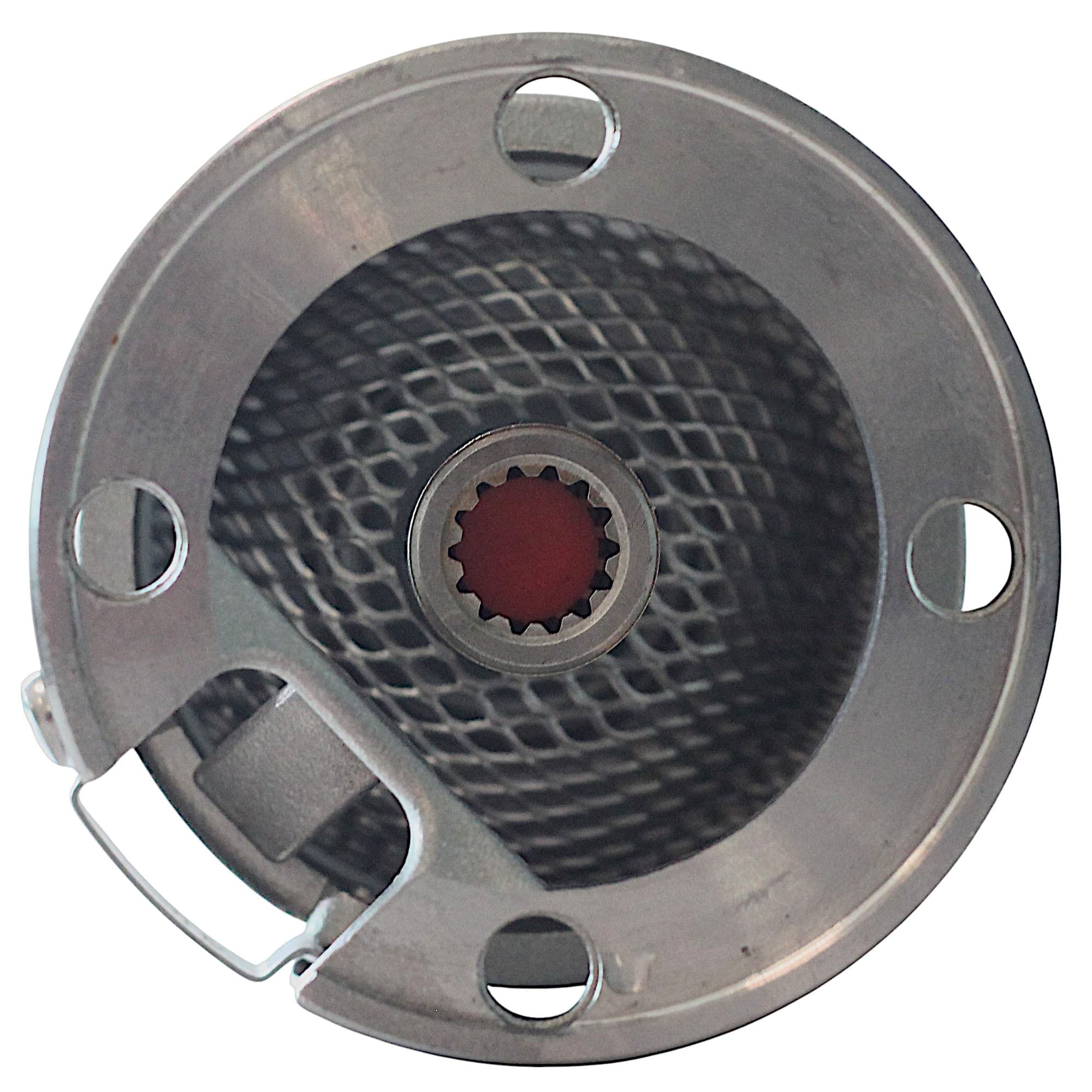

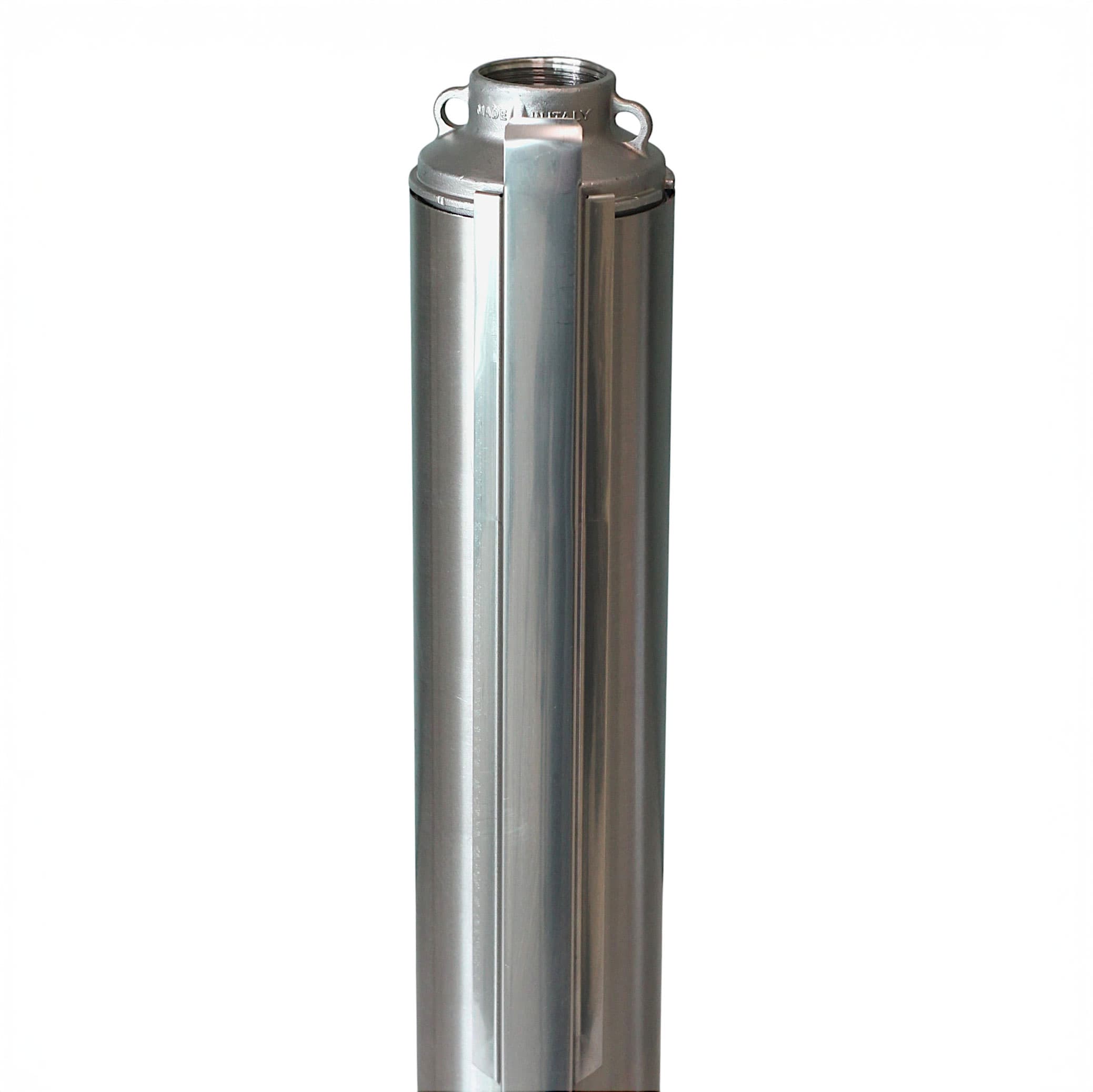

4HDP
4" Потопяеми помпи с плаващи работни колела
Официален партньор4HDP е потопяема помпа на HyDrop с диаметър 4", подходяща за средни и големи сондажи. Осигурява висока производителност и надеждност при водоснабдяване, напояване и промишлени приложения.
Характеристики
- Технология с плаващи работни колела
- Висока производителност за 4" сондажи
- Устойчива конструкция от неръждаема стомана
- Подходяща за продължителна работа
Приложения
Технически спецификации
| Параметри | Q (m³/h) → H (m) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 |
| 4HDP-0 005 | 0.5 | 0.37 | 3.5 | 1.4 | 98 | 1,1/4" | 85 | 80 | 72 | 61 | 44 | 18 |
| 4HDP-0 007 | 0.75 | 0.55 | 4.7 | 1.9 | 98 | 1,1/4" | 128 | 120 | 107 | 91 | 66 | 26 |
| 4HDP-0 010 | 1 | 0.75 | 5.8 | 2.2 | 98 | 1,1/4" | 170 | 160 | 143 | 121 | 88 | 35 |
| 4HDP-0 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 1,1/4" | 255 | 240 | 215 | 182 | 131 | 53 |
| 4HDP-0 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 1,1/4" | 340 | 320 | 242 | 242 | 175 | 70 |
kW
0.37
A 1~230
3.5
A 3~400
1.4
Ø mm
98
G
1,1/4"
Q 0
85 m
Q 0.3
80 m
Q 0.6
72 m
Q 0.9
61 m
Q 1.2
44 m
Q 1.5
18 m
kW
0.55
A 1~230
4.7
A 3~400
1.9
Ø mm
98
G
1,1/4"
Q 0
128 m
Q 0.3
120 m
Q 0.6
107 m
Q 0.9
91 m
Q 1.2
66 m
Q 1.5
26 m
kW
0.75
A 1~230
5.8
A 3~400
2.2
Ø mm
98
G
1,1/4"
Q 0
170 m
Q 0.3
160 m
Q 0.6
143 m
Q 0.9
121 m
Q 1.2
88 m
Q 1.5
35 m
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
1,1/4"
Q 0
255 m
Q 0.3
240 m
Q 0.6
215 m
Q 0.9
182 m
Q 1.2
131 m
Q 1.5
53 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
1,1/4"
Q 0
340 m
Q 0.3
320 m
Q 0.6
242 m
Q 0.9
242 m
Q 1.2
175 m
Q 1.5
70 m
| Параметри | Q (m³/h) → H (m) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 |
| 4HDP-1 005 | 0.5 | 0.37 | 3.5 | 1.4 | 98 | 1,1/4" | 60 | 56 | 50 | 43 | 35 | 26 | 15 |
| 4HDP-1 007 | 0.75 | 0.55 | 4.7 | 1.9 | 98 | 1,1/4" | 92 | 85 | 76 | 66 | 54 | 40 | 23 |
| 4HDP-1 010 | 1 | 0.75 | 5.8 | 2.2 | 98 | 1,1/4" | 122 | 112 | 101 | 86 | 71 | 53 | 30 |
| 4HDP-1 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 1,1/4" | 176 | 161 | 145 | 125 | 103 | 77 | 44 |
| 4HDP-1 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 1,1/4" | 231 | 212 | 191 | 164 | 135 | 101 | 58 |
| 4HDP-1 030 | 3 | 2.2 | 14.5 | 5.6 | 98 | 1,1/4" | 318 | 292 | 263 | 226 | 186 | 139 | 79 |
kW
0.37
A 1~230
3.5
A 3~400
1.4
Ø mm
98
G
1,1/4"
Q 0
60 m
Q 0.3
56 m
Q 0.6
50 m
Q 0.9
43 m
Q 1.2
35 m
Q 1.5
26 m
Q 1.8
15 m
kW
0.55
A 1~230
4.7
A 3~400
1.9
Ø mm
98
G
1,1/4"
Q 0
92 m
Q 0.3
85 m
Q 0.6
76 m
Q 0.9
66 m
Q 1.2
54 m
Q 1.5
40 m
Q 1.8
23 m
kW
0.75
A 1~230
5.8
A 3~400
2.2
Ø mm
98
G
1,1/4"
Q 0
122 m
Q 0.3
112 m
Q 0.6
101 m
Q 0.9
86 m
Q 1.2
71 m
Q 1.5
53 m
Q 1.8
30 m
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
1,1/4"
Q 0
176 m
Q 0.3
161 m
Q 0.6
145 m
Q 0.9
125 m
Q 1.2
103 m
Q 1.5
77 m
Q 1.8
44 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
1,1/4"
Q 0
231 m
Q 0.3
212 m
Q 0.6
191 m
Q 0.9
164 m
Q 1.2
135 m
Q 1.5
101 m
Q 1.8
58 m
kW
2.2
A 1~230
14.5
A 3~400
5.6
Ø mm
98
G
1,1/4"
Q 0
318 m
Q 0.3
292 m
Q 0.6
263 m
Q 0.9
226 m
Q 1.2
186 m
Q 1.5
139 m
Q 1.8
79 m
| Параметри | Q (m³/h) → H (m) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| 4HDP-2 005 | 0.5 | 0.37 | 3.5 | 1.4 | 98 | 1,1/4" | 47 | 42 | 39 | 36 | 33 | 28 | 23 | 18 | 12 |
| 4HDP-2 007 | 0.75 | 0.55 | 4.7 | 1.9 | 98 | 1,1/4" | 74 | 66 | 62 | 57 | 52 | 45 | 37 | 28 | 18 |
| 4HDP-2 010 | 1 | 0.75 | 5.8 | 2.2 | 98 | 1,1/4" | 98 | 87 | 82 | 76 | 68 | 59 | 49 | 37 | 24 |
| 4HDP-2 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 1,1/4" | 140 | 125 | 118 | 109 | 98 | 85 | 70 | 54 | 35 |
| 4HDP-2 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 1,1/4" | 191 | 171 | 161 | 148 | 134 | 116 | 96 | 73 | 47 |
| 4HDP-2 030 | 3 | 2.2 | 14.5 | 5.6 | 98 | 1,1/4" | 273 | 244 | 229 | 212 | 191 | 166 | 137 | 104 | 67 |
| 4HDP-2 040 | 4 | 3 | 19.7 | 7.5 | 98 | 1,1/4" | 367 | 327 | 308 | 285 | 257 | 223 | 184 | 140 | 91 |
kW
0.37
A 1~230
3.5
A 3~400
1.4
Ø mm
98
G
1,1/4"
Q 0
47 m
Q 0.3
42 m
Q 0.6
39 m
Q 0.9
36 m
Q 1.2
33 m
Q 1.5
28 m
Q 1.8
23 m
Q 2.1
18 m
Q 2.4
12 m
kW
0.55
A 1~230
4.7
A 3~400
1.9
Ø mm
98
G
1,1/4"
Q 0
74 m
Q 0.3
66 m
Q 0.6
62 m
Q 0.9
57 m
Q 1.2
52 m
Q 1.5
45 m
Q 1.8
37 m
Q 2.1
28 m
Q 2.4
18 m
kW
0.75
A 1~230
5.8
A 3~400
2.2
Ø mm
98
G
1,1/4"
Q 0
98 m
Q 0.3
87 m
Q 0.6
82 m
Q 0.9
76 m
Q 1.2
68 m
Q 1.5
59 m
Q 1.8
49 m
Q 2.1
37 m
Q 2.4
24 m
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
1,1/4"
Q 0
140 m
Q 0.3
125 m
Q 0.6
118 m
Q 0.9
109 m
Q 1.2
98 m
Q 1.5
85 m
Q 1.8
70 m
Q 2.1
54 m
Q 2.4
35 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
1,1/4"
Q 0
191 m
Q 0.3
171 m
Q 0.6
161 m
Q 0.9
148 m
Q 1.2
134 m
Q 1.5
116 m
Q 1.8
96 m
Q 2.1
73 m
Q 2.4
47 m
kW
2.2
A 1~230
14.5
A 3~400
5.6
Ø mm
98
G
1,1/4"
Q 0
273 m
Q 0.3
244 m
Q 0.6
229 m
Q 0.9
212 m
Q 1.2
191 m
Q 1.5
166 m
Q 1.8
137 m
Q 2.1
104 m
Q 2.4
67 m
kW
3
A 1~230
19.7
A 3~400
7.5
Ø mm
98
G
1,1/4"
Q 0
367 m
Q 0.3
327 m
Q 0.6
308 m
Q 0.9
285 m
Q 1.2
257 m
Q 1.5
223 m
Q 1.8
184 m
Q 2.1
140 m
Q 2.4
91 m
| Параметри | Q (m³/h) → H (m) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 |
| 4HDP-3 005 | 0.5 | 0.37 | 3.5 | 1.4 | 98 | 1,1/4" | 33 | 28 | 27 | 25 | 23 | 21 | 19 | 13 |
| 4HDP-3 007 | 0.75 | 0.55 | 4.7 | 1.9 | 98 | 1,1/4" | 47 | 40 | 37 | 35 | 32 | 29 | 26 | 18 |
| 4HDP-3 010 | 1 | 0.75 | 5.8 | 2.2 | 98 | 1,1/4" | 67 | 57 | 54 | 50 | 46 | 42 | 37 | 26 |
| 4HDP-3 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 1,1/4" | 100 | 85 | 80 | 75 | 70 | 63 | 56 | 39 |
| 4HDP-3 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 1,1/4" | 130 | 110 | 104 | 97 | 90 | 81 | 72 | 50 |
| 4HDP-3 030 | 3 | 2.2 | 14.5 | 5.6 | 98 | 1,1/4" | 195 | 165 | 156 | 146 | 135 | 122 | 108 | 75 |
| 4HDP-3 040 | 4 | 3 | 19.7 | 7.5 | 98 | 1,1/4" | 260 | 220 | 208 | 195 | 180 | 162 | 144 | 100 |
| 4HDP-3 055 | 5.5 | 4 | 25.1 | 9.8 | 98 | - | 351 | 296 | 281 | 263 | 243 | 219 | 194 | 135 |
kW
0.37
A 1~230
3.5
A 3~400
1.4
Ø mm
98
G
1,1/4"
Q 0
33 m
Q 0.3
28 m
Q 0.6
27 m
Q 0.9
25 m
Q 1.2
23 m
Q 1.5
21 m
Q 1.8
19 m
Q 2.1
13 m
kW
0.55
A 1~230
4.7
A 3~400
1.9
Ø mm
98
G
1,1/4"
Q 0
47 m
Q 0.3
40 m
Q 0.6
37 m
Q 0.9
35 m
Q 1.2
32 m
Q 1.5
29 m
Q 1.8
26 m
Q 2.1
18 m
kW
0.75
A 1~230
5.8
A 3~400
2.2
Ø mm
98
G
1,1/4"
Q 0
67 m
Q 0.3
57 m
Q 0.6
54 m
Q 0.9
50 m
Q 1.2
46 m
Q 1.5
42 m
Q 1.8
37 m
Q 2.1
26 m
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
1,1/4"
Q 0
100 m
Q 0.3
85 m
Q 0.6
80 m
Q 0.9
75 m
Q 1.2
70 m
Q 1.5
63 m
Q 1.8
56 m
Q 2.1
39 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
1,1/4"
Q 0
130 m
Q 0.3
110 m
Q 0.6
104 m
Q 0.9
97 m
Q 1.2
90 m
Q 1.5
81 m
Q 1.8
72 m
Q 2.1
50 m
kW
2.2
A 1~230
14.5
A 3~400
5.6
Ø mm
98
G
1,1/4"
Q 0
195 m
Q 0.3
165 m
Q 0.6
156 m
Q 0.9
146 m
Q 1.2
135 m
Q 1.5
122 m
Q 1.8
108 m
Q 2.1
75 m
kW
3
A 1~230
19.7
A 3~400
7.5
Ø mm
98
G
1,1/4"
Q 0
260 m
Q 0.3
220 m
Q 0.6
208 m
Q 0.9
195 m
Q 1.2
180 m
Q 1.5
162 m
Q 1.8
144 m
Q 2.1
100 m
kW
4
A 1~230
25.1
A 3~400
9.8
Ø mm
98
Q 0
351 m
Q 0.3
296 m
Q 0.6
281 m
Q 0.9
263 m
Q 1.2
243 m
Q 1.5
219 m
Q 1.8
194 m
Q 2.1
135 m
| Параметри | Q (m³/h) → H (m) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
| 4HDP-4 005 | 0.5 | 0.37 | 3.5 | 1.4 | 98 | 1,1/4" | 28 | 25 | 24 | 23 | 22 | 20 | 17 | 14 | 10 | 6 |
| 4HDP-4 007 | 0.75 | 0.55 | 4.7 | 1.9 | 98 | 1,1/4" | 41 | 37 | 36 | 34 | 33 | 31 | 26 | 20 | 15 | 8 |
| 4HDP-4 010 | 1 | 0.75 | 5.8 | 2.2 | 98 | 1,1/4" | 55 | 49 | 48 | 46 | 44 | 41 | 34 | 27 | 19 | 11 |
| 4HDP-4 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 1,1/4" | 83 | 74 | 72 | 69 | 65 | 61 | 52 | 41 | 29 | 17 |
| 4HDP-4 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 1,1/4" | 111 | 99 | 95 | 92 | 87 | 82 | 69 | 54 | 39 | 22 |
| 4HDP-4 030 | 3 | 2.2 | 14.5 | 5.6 | 98 | 1,1/4" | 166 | 148 | 143 | 138 | 131 | 123 | 103 | 81 | 58 | 34 |
| 4HDP-4 040 | 4 | 3 | 19.7 | 7.5 | 98 | 1,1/4" | 221 | 197 | 191 | 183 | 174 | 164 | 138 | 108 | 78 | 45 |
| 4HDP-4 055 | 5.5 | 4 | 25.1 | 9.8 | 98 | 1,1/4" | 290 | 259 | 250 | 241 | 229 | 215 | 181 | 142 | 102 | 59 |
| 4HDP-4 075 | 7.5 | 5.5 | - | 12.5 | 98 | 1,1/4" | 402 | 358 | 347 | 333 | 317 | 297 | 251 | 197 | 141 | 81 |
| 4HDP-4 100 | 10 | 7.5 | - | 16.9 | 98 | 1,1/4" | 536 | 478 | 462 | 444 | 422 | 396 | 334 | 263 | 188 | 109 |
kW
0.37
A 1~230
3.5
A 3~400
1.4
Ø mm
98
G
1,1/4"
Q 0
28 m
Q 0.3
25 m
Q 0.6
24 m
Q 0.9
23 m
Q 1.2
22 m
Q 1.5
20 m
Q 1.8
17 m
Q 2.1
14 m
Q 2.4
10 m
Q 2.7
6 m
kW
0.55
A 1~230
4.7
A 3~400
1.9
Ø mm
98
G
1,1/4"
Q 0
41 m
Q 0.3
37 m
Q 0.6
36 m
Q 0.9
34 m
Q 1.2
33 m
Q 1.5
31 m
Q 1.8
26 m
Q 2.1
20 m
Q 2.4
15 m
Q 2.7
8 m
kW
0.75
A 1~230
5.8
A 3~400
2.2
Ø mm
98
G
1,1/4"
Q 0
55 m
Q 0.3
49 m
Q 0.6
48 m
Q 0.9
46 m
Q 1.2
44 m
Q 1.5
41 m
Q 1.8
34 m
Q 2.1
27 m
Q 2.4
19 m
Q 2.7
11 m
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
1,1/4"
Q 0
83 m
Q 0.3
74 m
Q 0.6
72 m
Q 0.9
69 m
Q 1.2
65 m
Q 1.5
61 m
Q 1.8
52 m
Q 2.1
41 m
Q 2.4
29 m
Q 2.7
17 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
1,1/4"
Q 0
111 m
Q 0.3
99 m
Q 0.6
95 m
Q 0.9
92 m
Q 1.2
87 m
Q 1.5
82 m
Q 1.8
69 m
Q 2.1
54 m
Q 2.4
39 m
Q 2.7
22 m
kW
2.2
A 1~230
14.5
A 3~400
5.6
Ø mm
98
G
1,1/4"
Q 0
166 m
Q 0.3
148 m
Q 0.6
143 m
Q 0.9
138 m
Q 1.2
131 m
Q 1.5
123 m
Q 1.8
103 m
Q 2.1
81 m
Q 2.4
58 m
Q 2.7
34 m
kW
3
A 1~230
19.7
A 3~400
7.5
Ø mm
98
G
1,1/4"
Q 0
221 m
Q 0.3
197 m
Q 0.6
191 m
Q 0.9
183 m
Q 1.2
174 m
Q 1.5
164 m
Q 1.8
138 m
Q 2.1
108 m
Q 2.4
78 m
Q 2.7
45 m
kW
4
A 1~230
25.1
A 3~400
9.8
Ø mm
98
G
1,1/4"
Q 0
290 m
Q 0.3
259 m
Q 0.6
250 m
Q 0.9
241 m
Q 1.2
229 m
Q 1.5
215 m
Q 1.8
181 m
Q 2.1
142 m
Q 2.4
102 m
Q 2.7
59 m
kW
5.5
A 1~230
-
A 3~400
12.5
Ø mm
98
G
1,1/4"
Q 0
402 m
Q 0.3
358 m
Q 0.6
347 m
Q 0.9
333 m
Q 1.2
317 m
Q 1.5
297 m
Q 1.8
251 m
Q 2.1
197 m
Q 2.4
141 m
Q 2.7
81 m
kW
7.5
A 1~230
-
A 3~400
16.9
Ø mm
98
G
1,1/4"
Q 0
536 m
Q 0.3
478 m
Q 0.6
462 m
Q 0.9
444 m
Q 1.2
422 m
Q 1.5
396 m
Q 1.8
334 m
Q 2.1
263 m
Q 2.4
188 m
Q 2.7
109 m
| Параметри | Q (m³/h) → H (m) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 4.8 | 5.4 | 6 | 6.6 | 7.5 | 9 | 10.5 |
| 4HDP-6 007 | 0.75 | 0.55 | 4.7 | 1.9 | 98 | 2" | 29 | 23 | 22 | 21 | 19 | 17 | 12 | 6 |
| 4HDP-6 010 | 1 | 0.75 | 5.8 | 2.2 | 98 | 2" | 43 | 34 | 32 | 30 | 29 | 25 | 18 | 9 |
| 4HDP-6 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 2" | 64 | 50 | 48 | 45 | 42 | 37 | 26 | 14 |
| 4HDP-6 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 2" | 84 | 65 | 62 | 59 | 55 | 49 | 34 | 18 |
| 4HDP-6 030 | 3 | 2.2 | 14.5 | 5.6 | 98 | 2" | 119 | 92 | 88 | 84 | 79 | 69 | 48 | 26 |
| 4HDP-6 040 | 4 | 3 | 19.7 | 7.5 | 98 | 2" | 161 | 125 | 120 | 113 | 106 | 94 | 66 | 35 |
| 4HDP-6 055 | 5.5 | 4 | 25.1 | 9.8 | 98 | 2" | 217 | 169 | 161 | 153 | 143 | 126 | 88 | 47 |
| 4HDP-6 075 | 7.5 | 5.5 | - | 12.5 | 98 | 2" | 273 | 212 | 203 | 192 | 180 | 159 | 111 | 59 |
| 4HDP-6 100 | 10 | 7.5 | - | 16.9 | 98 | 2" | 378 | 294 | 281 | 266 | 249 | 220 | 154 | 81 |
kW
0.55
A 1~230
4.7
A 3~400
1.9
Ø mm
98
G
2"
Q 0
29 m
Q 4.8
23 m
Q 5.4
22 m
Q 6
21 m
Q 6.6
19 m
Q 7.5
17 m
Q 9
12 m
Q 10.5
6 m
kW
0.75
A 1~230
5.8
A 3~400
2.2
Ø mm
98
G
2"
Q 0
43 m
Q 4.8
34 m
Q 5.4
32 m
Q 6
30 m
Q 6.6
29 m
Q 7.5
25 m
Q 9
18 m
Q 10.5
9 m
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
2"
Q 0
64 m
Q 4.8
50 m
Q 5.4
48 m
Q 6
45 m
Q 6.6
42 m
Q 7.5
37 m
Q 9
26 m
Q 10.5
14 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
2"
Q 0
84 m
Q 4.8
65 m
Q 5.4
62 m
Q 6
59 m
Q 6.6
55 m
Q 7.5
49 m
Q 9
34 m
Q 10.5
18 m
kW
2.2
A 1~230
14.5
A 3~400
5.6
Ø mm
98
G
2"
Q 0
119 m
Q 4.8
92 m
Q 5.4
88 m
Q 6
84 m
Q 6.6
79 m
Q 7.5
69 m
Q 9
48 m
Q 10.5
26 m
kW
3
A 1~230
19.7
A 3~400
7.5
Ø mm
98
G
2"
Q 0
161 m
Q 4.8
125 m
Q 5.4
120 m
Q 6
113 m
Q 6.6
106 m
Q 7.5
94 m
Q 9
66 m
Q 10.5
35 m
kW
4
A 1~230
25.1
A 3~400
9.8
Ø mm
98
G
2"
Q 0
217 m
Q 4.8
169 m
Q 5.4
161 m
Q 6
153 m
Q 6.6
143 m
Q 7.5
126 m
Q 9
88 m
Q 10.5
47 m
kW
5.5
A 1~230
-
A 3~400
12.5
Ø mm
98
G
2"
Q 0
273 m
Q 4.8
212 m
Q 5.4
203 m
Q 6
192 m
Q 6.6
180 m
Q 7.5
159 m
Q 9
111 m
Q 10.5
59 m
kW
7.5
A 1~230
-
A 3~400
16.9
Ø mm
98
G
2"
Q 0
378 m
Q 4.8
294 m
Q 5.4
281 m
Q 6
266 m
Q 6.6
249 m
Q 7.5
220 m
Q 9
154 m
Q 10.5
81 m
| Параметри | Q (m³/h) → H (m) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 4.8 | 5.4 | 6 | 6.6 | 7.5 | 9 | 10.5 | 12 |
| 4HDP-9 010 | 1 | 0.75 | 5.8 | 2.2 | 98 | 2" | 27 | 24 | 23 | 22 | 20 | 17 | 13 | 8 | 3 |
| 4HDP-9 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 2" | 41 | 36 | 35 | 33 | 30 | 26 | 20 | 13 | 5 |
| 4HDP-9 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 2" | 55 | 48 | 47 | 45 | 40 | 34 | 27 | 17 | 6 |
| 4HDP-9 030 | 3 | 2.2 | 14.5 | 5.6 | 98 | 2" | 82 | 72 | 70 | 67 | 60 | 51 | 40 | 25 | 10 |
| 4HDP-9 040 | 4 | 3 | 19.7 | 7.5 | 98 | 2" | 103 | 90 | 88 | 84 | 75 | 64 | 50 | 32 | 12 |
| 4HDP-9 055 | 5.5 | 4 | 25.1 | 9.8 | 98 | 2" | 144 | 126 | 123 | 117 | 105 | 89 | 70 | 44 | 17 |
| 4HDP-9 075 | 7.5 | 5.5 | - | 12.5 | 98 | 2" | 196 | 171 | 167 | 159 | 143 | 121 | 95 | 60 | 23 |
| 4HDP-9 100 | 10 | 7.5 | - | 16.9 | 98 | 2" | 263 | 230 | 225 | 214 | 192 | 163 | 127 | 81 | 31 |
kW
0.75
A 1~230
5.8
A 3~400
2.2
Ø mm
98
G
2"
Q 0
27 m
Q 4.8
24 m
Q 5.4
23 m
Q 6
22 m
Q 6.6
20 m
Q 7.5
17 m
Q 9
13 m
Q 10.5
8 m
Q 12
3 m
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
2"
Q 0
41 m
Q 4.8
36 m
Q 5.4
35 m
Q 6
33 m
Q 6.6
30 m
Q 7.5
26 m
Q 9
20 m
Q 10.5
13 m
Q 12
5 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
2"
Q 0
55 m
Q 4.8
48 m
Q 5.4
47 m
Q 6
45 m
Q 6.6
40 m
Q 7.5
34 m
Q 9
27 m
Q 10.5
17 m
Q 12
6 m
kW
2.2
A 1~230
14.5
A 3~400
5.6
Ø mm
98
G
2"
Q 0
82 m
Q 4.8
72 m
Q 5.4
70 m
Q 6
67 m
Q 6.6
60 m
Q 7.5
51 m
Q 9
40 m
Q 10.5
25 m
Q 12
10 m
kW
3
A 1~230
19.7
A 3~400
7.5
Ø mm
98
G
2"
Q 0
103 m
Q 4.8
90 m
Q 5.4
88 m
Q 6
84 m
Q 6.6
75 m
Q 7.5
64 m
Q 9
50 m
Q 10.5
32 m
Q 12
12 m
kW
4
A 1~230
25.1
A 3~400
9.8
Ø mm
98
G
2"
Q 0
144 m
Q 4.8
126 m
Q 5.4
123 m
Q 6
117 m
Q 6.6
105 m
Q 7.5
89 m
Q 9
70 m
Q 10.5
44 m
Q 12
17 m
kW
5.5
A 1~230
-
A 3~400
12.5
Ø mm
98
G
2"
Q 0
196 m
Q 4.8
171 m
Q 5.4
167 m
Q 6
159 m
Q 6.6
143 m
Q 7.5
121 m
Q 9
95 m
Q 10.5
60 m
Q 12
23 m
kW
7.5
A 1~230
-
A 3~400
16.9
Ø mm
98
G
2"
Q 0
263 m
Q 4.8
230 m
Q 5.4
225 m
Q 6
214 m
Q 6.6
192 m
Q 7.5
163 m
Q 9
127 m
Q 10.5
81 m
Q 12
31 m
| Параметри | Q (m³/h) → H (m) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Модел | HP | kW | A 1~230 | A 3~400 | Ø mm | G | 0 | 4.8 | 5.4 | 6 | 6.6 | 7.5 | 9 | 10.5 | 12 | 13.5 | 15 | 16.5 | 18 | 19.5 |
| 4HDP-17 015 | 1.5 | 1.1 | 8.6 | 3.0 | 98 | 2" | 23 | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 12 | 11 | 9 | 8 | 6 | 4 |
| 4HDP-17 020 | 2 | 1.5 | 10.7 | 4.1 | 98 | 2" | 35 | 29 | 27 | 25 | 24 | 23 | 21 | 20 | 18 | 16 | 14 | 11 | 9 | 5 |
| 4HDP-17 030 | 3 | 2.2 | 14.5 | 5.6 | 98 | 2" | 52 | 43 | 40 | 38 | 36 | 34 | 32 | 30 | 28 | 24 | 21 | 17 | 13 | 8 |
| 4HDP-17 040 | 4 | 3 | 19.7 | 7.5 | 98 | 2" | 69 | 57 | 54 | 51 | 48 | 45 | 43 | 40 | 37 | 33 | 28 | 23 | 17 | 11 |
| 4HDP-17 055 | 5.5 | 4 | 25.1 | 9.8 | 98 | 2" | 92 | 76 | 72 | 68 | 64 | 60 | 57 | 53 | 49 | 44 | 37 | 30 | 23 | 14 |
| 4HDP-17 075 | 7.5 | 5.5 | - | 12.5 | 98 | 2" | 127 | 105 | 98 | 93 | 88 | 83 | 78 | 73 | 67 | 60 | 51 | 42 | 32 | 20 |
| 4HDP-17 100 | 10 | 7.5 | - | 16.9 | 98 | 2" | 173 | 143 | 134 | 127 | 120 | 113 | 107 | 100 | 92 | 82 | 70 | 57 | 43 | 27 |
kW
1.1
A 1~230
8.6
A 3~400
3.0
Ø mm
98
G
2"
Q 0
23 m
Q 4.8
19 m
Q 5.4
18 m
Q 6
17 m
Q 6.6
16 m
Q 7.5
15 m
Q 9
14 m
Q 10.5
13 m
Q 12
12 m
Q 13.5
11 m
Q 15
9 m
Q 16.5
8 m
Q 18
6 m
Q 19.5
4 m
kW
1.5
A 1~230
10.7
A 3~400
4.1
Ø mm
98
G
2"
Q 0
35 m
Q 4.8
29 m
Q 5.4
27 m
Q 6
25 m
Q 6.6
24 m
Q 7.5
23 m
Q 9
21 m
Q 10.5
20 m
Q 12
18 m
Q 13.5
16 m
Q 15
14 m
Q 16.5
11 m
Q 18
9 m
Q 19.5
5 m
kW
2.2
A 1~230
14.5
A 3~400
5.6
Ø mm
98
G
2"
Q 0
52 m
Q 4.8
43 m
Q 5.4
40 m
Q 6
38 m
Q 6.6
36 m
Q 7.5
34 m
Q 9
32 m
Q 10.5
30 m
Q 12
28 m
Q 13.5
24 m
Q 15
21 m
Q 16.5
17 m
Q 18
13 m
Q 19.5
8 m
kW
3
A 1~230
19.7
A 3~400
7.5
Ø mm
98
G
2"
Q 0
69 m
Q 4.8
57 m
Q 5.4
54 m
Q 6
51 m
Q 6.6
48 m
Q 7.5
45 m
Q 9
43 m
Q 10.5
40 m
Q 12
37 m
Q 13.5
33 m
Q 15
28 m
Q 16.5
23 m
Q 18
17 m
Q 19.5
11 m
kW
4
A 1~230
25.1
A 3~400
9.8
Ø mm
98
G
2"
Q 0
92 m
Q 4.8
76 m
Q 5.4
72 m
Q 6
68 m
Q 6.6
64 m
Q 7.5
60 m
Q 9
57 m
Q 10.5
53 m
Q 12
49 m
Q 13.5
44 m
Q 15
37 m
Q 16.5
30 m
Q 18
23 m
Q 19.5
14 m
kW
5.5
A 1~230
-
A 3~400
12.5
Ø mm
98
G
2"
Q 0
127 m
Q 4.8
105 m
Q 5.4
98 m
Q 6
93 m
Q 6.6
88 m
Q 7.5
83 m
Q 9
78 m
Q 10.5
73 m
Q 12
67 m
Q 13.5
60 m
Q 15
51 m
Q 16.5
42 m
Q 18
32 m
Q 19.5
20 m
kW
7.5
A 1~230
-
A 3~400
16.9
Ø mm
98
G
2"
Q 0
173 m
Q 4.8
143 m
Q 5.4
134 m
Q 6
127 m
Q 6.6
120 m
Q 7.5
113 m
Q 9
107 m
Q 10.5
100 m
Q 12
92 m
Q 13.5
82 m
Q 15
70 m
Q 16.5
57 m
Q 18
43 m
Q 19.5
27 m
* H (m) — напор в метри при съответния дебит Q (m³/h). За пълни криви на производителност, свържете се с нас.
Съвместими мотори
За инсталация с 4HDP препоръчваме следните мотори на HyDrop:
4HDA
Стандартен 4" потопяем мотор
Нуждаете се от професионална консултация?
Нашите специалисти ще ви помогнат да изберете правилната помпа за вашите нужди.
